MOTOROLA, INC.
MPMC221
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
Unidentified |
|
Topology |
Star |
|
Wiring Type |
Fiber optic cable |
|
Data Bus |
PCI Mezzanine |
|

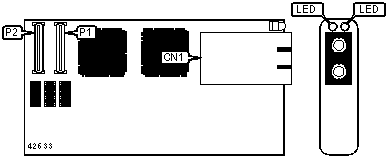

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Fiber optic connector (SC) |
CN1 |
PCI Mezzanine connector |
P2 |
|
PCI Mezzanine connector |
P1 |
||
|
DIAGNOSTIC LED(S) |
||
|
LED |
LED |
Condition |
|
Off |
Off |
Unit not functioning |
|
Off |
On |
Ring operation - wrap S |
|
On |
Off |
Network connection is not good |
|
On |
On |
Reserved |
|
Note: Location of specific LED is not indicated. |
||
