3COM CORPORATION
3COM OFFICE CONNECT
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
100Mbps/10Mbps |
|
Topology |
Star, Peer-Peer |
|
Wiring Type |
Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|

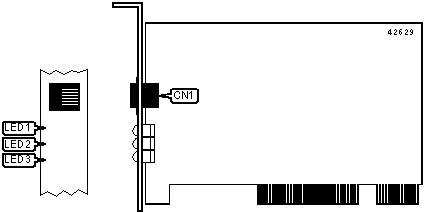

CONNECTIONS |
|
|
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
Data is being transmitted/received |
|
LED1 |
Unidentified |
Off |
Data is not being transmitted/received |
|
LED2 |
Unidentified |
On |
10Mbps network connection is good |
|
LED2 |
Unidentified |
Off |
10Mbps network connection is broken |
|
LED3 |
Unidentified |
On |
100Mbps network connection is good |
|
LED3 |
Unidentified |
Off |
100Mbps network connection is broken |
