PLANET TECHNOLOGY CORPORATION
ENW-9503A (REV. 2.0)
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Available |
|
Network Transfer Rate |
100Mbps/10Mbps |
|
Topology |
Star, Peer-Peer |
|
Wiring Type |
Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|

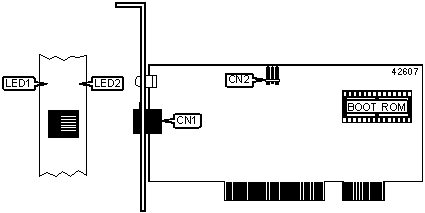

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
Wake-on-LAN connector |
CN2 |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Network connection at 100Mbps is good |
|
LED1 |
Green |
Off |
Network connection at 100Mbps is not good |
|
LED1 |
Green |
Blinking |
Data is being transmitted/received at 100Mbps |
|
LED2 |
Yellow |
On |
Network connection at 10Mbps is good |
|
LED2 |
Yellow |
Off |
Network connection at 10Mbps is not good |
|
LED2 |
Yellow |
Blinking |
Data is being transmitted/received at 10Mbps |
