ALFA, INC.
ATP2BNC
|
Card Type |
Ethernet Transceiver |
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Data Bus |
External |
|

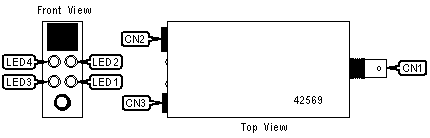

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
RG-58A/U BNC connector |
CN1 |
DC power |
CN3 |
|
RJ-45 UTP connector |
CN2 |
||
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
UTP link is good |
|
LED1 |
Green |
Blinking |
Data is being transmitted/received through the UTP connector |
|
LED1 |
Green |
Off |
UTP link is broken |
|
LED2 |
Green |
Blinking |
Data is being transmitted/received through the BNC connector |
|
LED2 |
Green |
Off |
Data is not being transmitted/received through the BNC connector |
|
LED3 |
Amber |
Blinking |
Collision detected on network |
|
LED3 |
Amber |
Off |
No collision detected on network |
|
LED4 |
Green |
On |
Unit is receiving power |
|
LED4 |
Green |
Off |
Unit is not receiving power |
