ALFA, INC.
AUI2TP
|
Card Type |
Ethernet Transceiver |
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port |
|
Data Bus |
External |
|

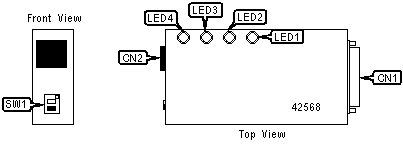

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
AUI transceiver via DB-15 port |
CN1 |
RJ-45 UTP connector |
CN2 |
|
SIGNAL QUALITY ERROR SETTINGS |
|||
|
Function |
SW1/1 |
SW1/2 |
|
| » |
SQE disabled |
Off |
Off |
|
SQE enabled |
On |
On |
|
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Unit is receiving power |
|
LED1 |
Green |
Off |
Unit is not receiving power |
|
LED2 |
Green |
Blinking |
Data is being transmitted |
|
LED2 |
Green |
Off |
Data is not being transmitted |
|
LED3 |
Green |
Blinking |
Data is being received |
|
LED3 |
Green |
Off |
Data is not being received |
|
LED4 |
Red |
Blinking |
Collision detected on network |
|
LED4 |
Red |
Off |
No collision detected on network |
