B & B ELECTRONICS
ETISAT
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Data Bus |
16-bit ISA |
|

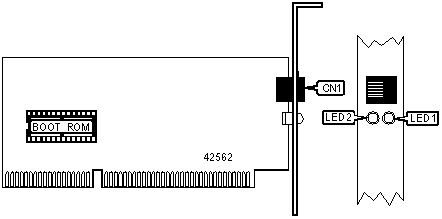

CONNECTIONS |
|
|
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
Blinking |
Data is being transmitted |
|
LED1 |
Unidentified |
Off |
Data is not being transmitted |
|
LED2 |
Unidentified |
On |
Netword connection is good |
|
LED2 |
Unidentified |
Off |
Network connection is broken |
