ADDTRON TECHNOLOGY CO., LTD.
AEF-380TX
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Available |
|
Network Transfer Rate |
100Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Data Bus |
32-bit PCI |
|
CONNECTIONS |
|
|
Function |
Label |
|
RJ-45 UTP connector |
CN1 |
|

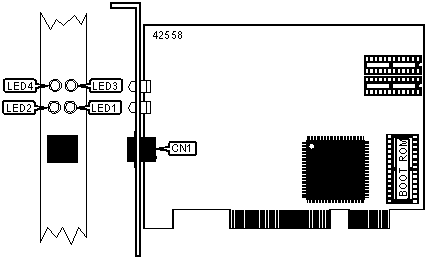

DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Amber |
Blinking |
Data is being transmitted/received |
|
LED1 |
Amber |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Off |
Network connection is broken |
|
LED3 |
Green |
On |
10Base-T network detected |
|
LED3 |
Green |
Off |
10Base-T network not detected |
|
LED4 |
Green |
On |
100Base-Tx Fast Ethernet network detected |
|
LED4 |
Green |
Off |
100Base-Tx Fast Ethernet network not detected |
