ADDTRON TECHNOLOGY CO., LTD.
AE-380PCI
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Boot ROM |
Available |
|
Network Transfer Rate |
10Mbps (half-duplex), 20Mbps (full-duplex) |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Data Bus |
32-bit PCI |
|
CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|

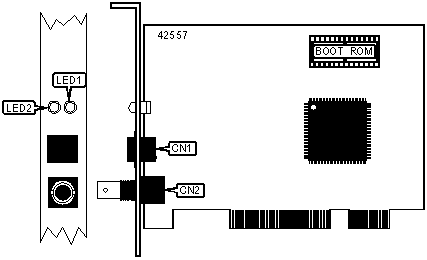

RJ-45 UTP connector |
CN1 |
RG-58A/U BNC connector |
CN2 |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Amber |
Blinking |
Data is being transmitted/received |
|
LED1 |
Amber |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Off |
Network connection is broken |
