Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

10/100Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

32-bit PCI

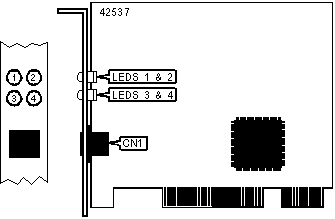

CONNECTIONS

Function

Label

RJ-45 UTP connector

CN1

DIAGNOSTIC LEDS

LED

Color

Status

Condition

LED1

Yellow

Blinking

Data is being transmitted/received in 10Mbps mode

LED1

Yellow

Off

Data is not being transmitted/received in 10Mbps mode

LED2

Green

Blinking

Data is being transmitted/received in 100Mbps mode

LED2

Green

Off

Data is not being transmitted/received in 100Mbps mode

LED3

Yellow

On

10Mbps network link established

LED3

Yellow

Off

10Mbps network link not established

LED4

Green

On

100Mbps network link established

LED4

Green

Off

100Mbps network link not established
