Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

10/100Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

32-bit PCI

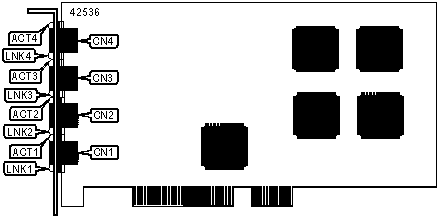

CONNECTIONS

Function

Label

Function

Label

RJ-45 UTP connector - port 1

CN1

RJ-45 UTP connector - port 3

CN3

RJ-45 UTP connector - port 2

CN2

RJ-45 UTP connector - port 4

CN4

DIAGNOSTIC LEDS

LED

Color

Status

Condition

ACT1

Green

On

Data is being transmitted/received on port 1

ACT1

Green

Off

Data is not being transmitted/received on port 1

LNK1

Yellow

On

Network connection is good on port 1

LNK1

Yellow

Blinking

Link is being established on port 1. Autosensing in progress.

LNK1

Yellow

Off

Network connection is broken on port 1

ACT2

Green

On

Data is being transmitted/received on port 2

ACT2

Green

Off

Data is not being transmitted/received on port 2

LNK2

Yellow

On

Network connection is good on port 2

LNK2

Yellow

Blinking

Link is being established on port 2. Autosensing in progress.

LNK2

Yellow

Off

Network connection is broken on port 2

ACT3

Green

On

Data is being transmitted/received on port 3

ACT3

Green

Off

Data is not being transmitted/received on port 3

LNK3

Yellow

On

Network connection is good on port 3

LNK3

Yellow

Blinking

Link is being established on port 3. Autosensing in progress.

LNK3

Yellow

Off

Network connection is broken on port 3

ACT4

Green

On

Data is being transmitted/received on port 4

ACT4

Green

Off

Data is not being transmitted/received on port 4

LNK4

Yellow

On

Network connection is good on port 4

LNK4

Yellow

Blinking

Link is being established on port 4. Autosensing in progress.

LNK4

Yellow

Off

Network connection is broken on port 4
