ACCTON TECHNOLOGY CORPORATION
TRANSPAIR - BNC
| Card Type | Ethernet Transceiver |
| NIC Type | Ethernet |
| Maximum Onboard Memory | Unidentified |
| Boot ROM | Not available |
| Network Transfer Rate | 10Mbps |
| Topology | Linear Bus |
| Wiring Type | RG-58A/U 50ohm coaxial, Unshielded Twisted Pair |
| Data Bus | External |

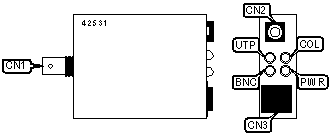

CONNECTIONS |
|||
Function |
Label |
Function |
Label |
| RG-58A/U BNC connector | CN1 |
RJ-45 UTP connector | CN3 |
| Power | CN2 |
||
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
UTP |
Green |
On |
UTP link is good |
UTP |
Green |
Blinking |
Data is being transmitted/received on UTP interface |
UTP |
Green |
Off |
UTP link is broken |
BNC |
Green |
Blinking |
Data is being transmitted/received on BNC interface |
BNC |
Green |
Off |
Data is not being transmitted/received on BNC interface |
COL |
Red |
On |
Collision detected on network |
COL |
Red |
Off |
No collision detected on network |
PWR |
Green |
On |
Power is on |
PWR |
Green |
Off |
Power is off |
