PATTON ELECTRONICS, INC.
2035
| Card Type | Interface Converter |
| Chip Set | Unidentified |
| I/O Options | 9-pin serial port, 36-pin parallel port |
| Maximum Data Rate | 115.2Kbps |
| Data Bus | External |

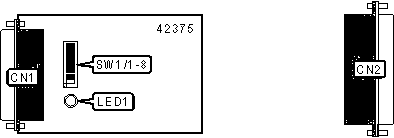

| CONNECTIONS | |||
Function |
Label |
Function |
Label |
| 9-pin serial port | CN1 |
36-pin parallel port | CN2 |
| USER CONFIGURABLE SETTINGS | |||
Setting |
Label |
Position |
|
| » | Hardware flow control enabled | SW1/1 |
Off |
| Software flow control enabled | SW1/1 |
On |
|
| » | LED indicator enabled | SW1/2 |
On |
| LED indicator disabled | SW1/2 |
Off |
|
| DATA FORMAT | ||||||
Data |
Parity |
Stop Bits |
SW1/3 |
SW1/4 |
SW1/5 |
|
» |
8bits |
No parity |
1 stop bit |
Off |
Off |
Off |
8bits |
Odd parity |
1 stop bit |
On |
Off |
Off |
|
8bits |
Even parity |
1 stop bit |
Off |
On |
Off |
|
7bits |
Odd parity |
2 stop bits |
On |
On |
Off |
|
7bits |
Even parity |
2 stop bits |
Off |
Off |
On |
|
7bits |
No parity |
2 stop bits |
On |
Off |
On |
|
7bits |
Odd parity |
1 stop bit |
Off |
On |
On |
|
7bits |
Even parity |
1 stop bit |
On |
On |
On |
|
| DATA RATE | ||||
Setting |
SW1/6 |
SW1/7 |
SW1/8 |
|
1200bps |
Off |
Off |
On |
|
2400bps |
On |
Off |
On |
|
4800bps |
On |
On |
Off |
|
9600bps |
Off |
On |
On |
|
19.2Kbps |
On |
On |
On |
|
» |
38.4Kbps |
Off |
Off |
Off |
57.6Kbps |
On |
Off |
Off |
|
115.2Kbps |
Off |
On |
Off |
|
LED |
||
LED Codes |
Color |
Condition |
· · - · / · · - · / |
Red |
Computer is sending data |
· / · / · / |
Red |
Serial device is connected; computer is not sending data |
· · / · · / |
Red |
Serial and parallel device is connected; computer is not sending data |
· - · / · - · / |
Red |
Printer not ready; data held in buffer |
· · · · / · · · · |
Red |
Computer ignoring flow control; data lost |
| Note: LED blinks to show data activity. ( · ) Dot indicates blink, (- ) short line indicates short pause, and ( / ) long line indicates long pause. | ||
