CNET TECHNOLOGIES, INC.
CN10EBT/VL (UTP)
|
Card Type |
Ethernet |
|
Data Bus |
32-bit Vesa Local Bus |
|
Maximum network Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

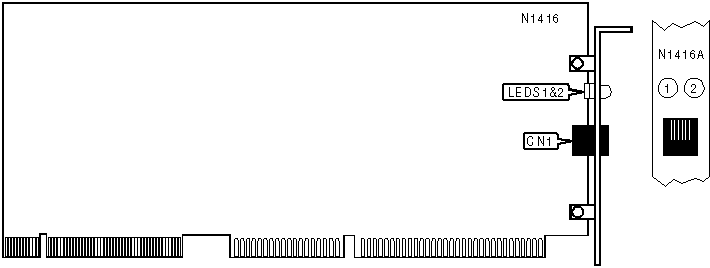

CONNECTIONS |
|
|
Function |
Label |
|
Unshielded twisted pair |
CN1 |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
10Base-T network connection is good |
|
LED1 |
Green |
Off |
10Base-T network connection is broken |
|
LED2 |
Yellow |
On |
Data is being received |
|
LED2 |
Yellow |
Off |
Data is not being received |
|
Note: The exact location of LED1 and LED2 is unidentified. |
|||
