EURONE
EM-7130S
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 233/266/300/333/350/400/450/500MHz |
| Chip Set | SIS |
| Video Chip Set | Unidentified |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 768MB (EDO, SDRAM, & DDR supported) |
| Maximum Video Memory | 8MB |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | AMI |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, IR connector, USB connectors (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), Wake-on-LAN connector, Digital audio in, Digital audio out |

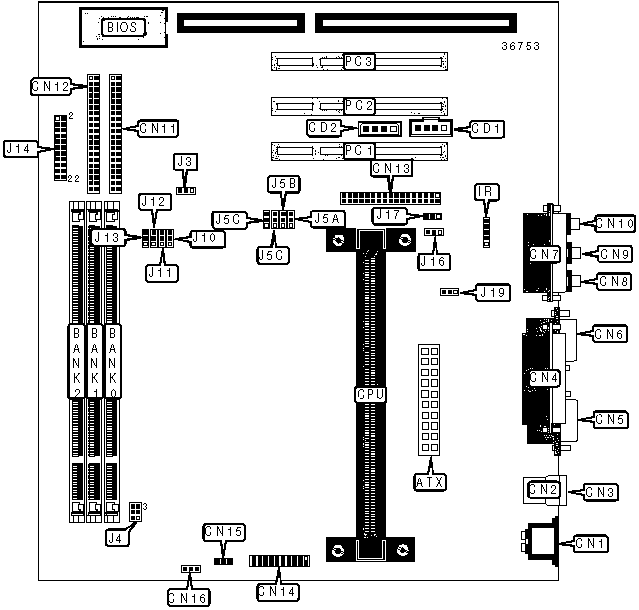

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Floppy drive interface | CN13 |
| Audio in - CD-ROM (Sony) | CD1 | VGA feature connector | CN14 |
| Audio in - CD-ROM (Panasonic) | CD2 | Chassis fan power | CN15 |
| PS/2 mouse port | CN1 | CPU fan power | CN16 |
| USB port 1 | CN2 | IR connector | IR |
| USB port 2 | CN3 | Power LED & keylock | J14/Pins 2, 4, 6, 8 & 10 |
| Parallel port | CN4 | Speaker | J14/Pins 1, 3, 5 & 7 |
| Serial port 1 | CN5 | IDE interface LED | J14/Pins 15 & 16 |
| Serial port 2 | CN6 | Reset switch | J14/Pins 17 & 18 |
| Game/MIDI port | CN7 | Green PC connector | J14/Pins 21 & 22 |
| Line in | CN8 | Digital audio in | J16 |
| Microphone in | CN9 | Digital audio out | J17 |
| Line out | CN10 | Wake-on-LAN connector | J19 |
| IDE interface 1 | CN11 | 32-bit PCI slots | PC1-PC3 |
| IDE interface 2 | CN12 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
|
CMOS memory normal operation | J3 | Pins 1 & 2 closed |
| CMOS memory clear | J3 | Pins 2 & 3 closed | |
| » | DIMM voltage 3.3V | J4 | Pins 2 & 3, 5 & 6 closed |
|
DIMM voltage 5V | J4 | Pins 1 & 2, 4 & 5 closed |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
264MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
520MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 1M x 64 |
528MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 2M x 64 |
544MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 4M x 64 |
576MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 8M x 64 |
640MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO, SDRAM, & DDR memory. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU MULTIPLIER SELECTION |
|||||
Multiplier |
J5A | J5B | J5C | J5D | |
2x |
Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | |
2.5x |
Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | |
3x |
Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | |
| 3.5x | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | |
| » | 4x | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed |
| 4.5x | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | |
| 5x | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | |
| 5.5x | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | |
CPU FREQUENCY SELECTION |
|||||
| Frequency | J10 | J11 | J12 | J13 | |
| » | 66MHz | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 2 & 3 closed |
| 100MHz (SDRAM 66MHz) | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 2 & 3 closed | |
| 100MHz (SDRAM 100MHz) | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | |
