EURONE
EM-7226S
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 233/266/300/333/350/400/450MHz |
| Chip Set | BXcel |
| Audio Chip Set | ALI |
| Maximum Onboard Memory | 768MB (EDO, FPM, & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | AMI |
| Dimensions | 220mm x 220mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, sound/game interface, green PC connector, IDE interfaces (2), parallel interface, serial interfaces (2), ATX power connector, AGP slot, microphone in interface, audio in - CD-ROMs (2), Digital audio in, Digital audio out, ATX form card connector |

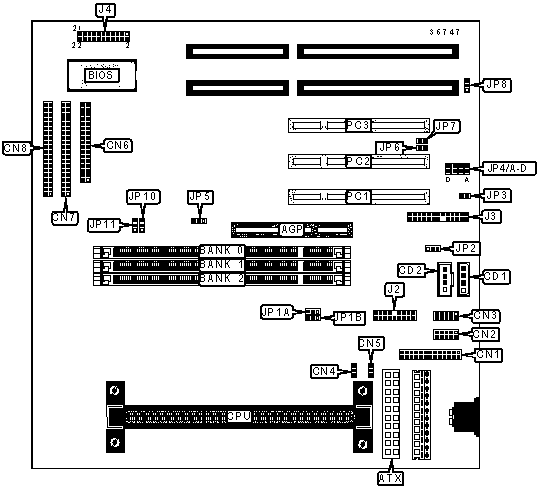

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
ATX form card connector | J2 |
| ATX power connector | ATX |
Sound & game interface | J3 |
| Audio in - CD-ROM (Panasonic) | CD1 | Power LED & keylock | J4/Pins 2, 4, 6, 8 & 10 |
| Audio in - CD-ROM (Sony) | CD2 | Speaker | J4/Pins 1, 3, 5 & 7 |
| Parallel interface | CN1 | Turbo LED | J4/Pins 13 & 14 |
| Serial interface 2 | CN2 | IDE interface LED | J4/Pins 15 & 16 |
| Serial interface 1 | CN3 | Reset switch | J4/Pins 17 & 18 |
| Chassis fan power | CN4 | Green PC LED | J4/Pins 19 & 20 |
| CPU fan power | CN5 | Green PC connector | J4/Pins 21 & 22 |
| Floppy drive interface | CN6 | Digital audio in | JP6 |
| IDE interface 1 | CN7 | Digital audio out | JP7 |
| IDE interface 2 | CN8 | 32-bit PCI slots | PC1-PC3 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| CMOS memory normal operation | JP2 | Pins 1 & 2 Closed | |
| CMOS memory clear | JP2 | Pins2 & 3 Closed | |
| » | Microphone type standard mode | JP3 | Open |
|
Microphone type special mode | JP3 | Closed |
| » | On-board sound enabled | JP8 | Pins 2 & 3 Closed |
| On-board sound disabled | JP8 | Pins 1 & 2 Closed | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
72MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
136MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
264MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
520MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 1M x 64 |
528MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 2M x 64 |
544MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 4M x 64 |
576MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 8M x 64 |
640MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note:
Board supports EDO, FPM, & SDRAM memory. Note: EDO & FPM memory is not recomended with 100MHz CPU frequency. |
|||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU FREQUENCY SELECTION |
|||
Frequency |
JP5 | JP10 | JP11 |
66MHz |
Pins 2 & 3 Closed | Pins 1 & 2 Closed | Pins 1 & 2 Closed |
100MHz |
Pins 1 & 2 Closed | Pins 1 & 2 Closed | Pins 1 & 2 Closed |
112MHz |
Pins 1 & 2 Closed | Pins 1 & 2 Closed | Pins 2 & 3 Closed |
133MHz |
Pins 1 & 2 Closed | Pins 2 & 3 Closed | Pins 1 & 2 Closed |
| Note: 112MHz and 133MHz settings are for internal testing only. | |||
CPU MULTIPLIER SELECTION |
||||
Multiplier |
JP4A | JP4B | JP4C | JP4D |
2x |
Closed | Closed | Closed | Closed |
2.5x |
Open | Closed | Closed | Closed |
3x |
Closed | Closed | Open | Closed |
| 3.5x | Open | Closed | Open | Closed |
| 4x | Closed | Closed | Closed | Open |
| 4.5x | Open | Closed | Closed | Open |
| 5x | Closed | Closed | Open | Open |
| 5.5x | Open | Closed | Open | Open |
| 6x | Closed | Open | Closed | Closed |
| 6.5x | Open | Open | Closed | Closed |
| 7x | Closed | Open | Open | Closed |
| 7.5x | Open | Open | Open | Closed |
| 8x | Closed | Open | Closed | Open |
DIMM VOLTAGE SELECTION |
||
Voltage |
JP1A | JP1B |
3.3V |
Pins 1 & 2 Closed | Pins 1 & 2 Closed |
5V |
Pins 2 & 3 Closed | Pins 2 & 3 Closed |
