EURONE

EM-5598SG

Device Type Mainboard
Processor CX 6X86L/IBM 6X86L/CX 6X86MX/IBM 6X86MX/CX M2/AM K6/AM K6-2/Pentium/Pentium MMX/IDT C6
Processor Speed 90/100/150/166/200/225/233/240/266/300/333/350/366/380/400/450/475MHz
Chip Set SIS 530
Video Chip Set Unidentified
Audio Chip Set Unidentified
Maximum Onboard Memory 768MB (SDRAM supported)
Maximum Video Memory 8MB (shared from system memory)
Maximum Audio Memory Unidentified
Cache 1024/2048KB
BIOS Unidentified
Dimensions 220mm x 220mm
I/O Options 32-bit PCI slots (3), floppy drive interface, game/MIDI interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial interfaces (2), VGA feature connector, IR interface, USB interfaces (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), Wake-on-LAN connector

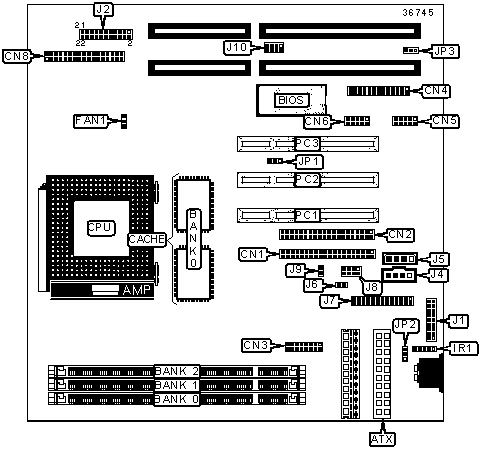

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Turbo LED J2/Pins 13 & 14
IDE interface 2 CN1 IDE interface LED J2/Pins 15 & 16
IDE interface 1 CN2 Reset switch J2/Pins 17 & 18
VGA feature connector CN3 Power supply J2/Pins 21 & 22
Parallel interface CN4 Audio in - CD-ROM (Sony) J4
Serial interface 2 CN5 Audio in - CD-ROM (Panasonic) J5
Serial interface 1 CN6 Sound & game/MIDI interface J7
Floppy drive interface CN8 Digital audio interface J8
CPU fan power FAN1 SPDIF in J9
IR connector 1 IR1 PS/2 mouse interface J10
ATX form card connector J1 Wake-on-LAN connector JP1
Speaker J2/Pins 1, 3, 5, 7 32-bit PCI slots PC1-PC3
Power LED & keylock J2/Pins 2, 4, 6, 8, 10


USER CONFIGURABLE SETTINGS

Function

Label

Position

» SPDIF out signal voltage selection 5v J6 Closed
  SPDIF out signal voltage selection 0.5v J6 Open

»

 Keyboard power on disabled JP2 Pins 1 & 2 closed
  Keyboard power on enabled JP2 Pins 2 & 3 closed
» CMOS memory normal operation JP3 Pins 1 & 2 closed



 CMOS memory clear JP3 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

4MB

(1) 512KB x 64

None

None

8MB

(1) 1M x 64

None

None

8MB

(1) 512KB x 64

(1) 512KB x 64

None

12MB

(1) 512KB x 64

(1) 512KB x 64

(1) 512KB x 64

16MB

(1) 2M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

20MB

(1) 1M x 64

(1) 1M x 64

(1) 512KB x 64

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

36MB

(1) 2M x 64

(1) 2M x 64

(1) 512KB x 64

40MB

(1) 2M x 64

(1) 2M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

68MB

(1) 4M x 64

(1) 4M x 64

(1) 512KB x 64

72MB

(1) 4M x 64

(1) 4M x 64

(1) 1M x 64

80MB

(1) 4M x 64

(1) 4M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 8M x 64

None

132MB

(1) 8M x 64

(1) 8M x 64

(1) 512KB x 64

136MB

(1) 8M x 64

(1) 8M x 64

(1) 1M x 64

144MB

(1) 8M x 64

(1) 8M x 64

(1) 2M x 64

160MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

260MB

(1) 16M x 64

(1) 16M x 64

(1) 512KB x 64

264MB

(1) 16M x 64

(1) 16M x 64

(1) 1M x 64

272MB

(1) 16M x 64

(1) 16M x 64

(1) 2M x 64

288MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

320MB

(1) 16M x 64

(1) 16M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

516MB

(1) 32M x 64

(1) 32M x 64

(1) 512KB x 64

520MB

(1) 32M x 64

(1) 32M x 64

(1) 1M x 64

528MB

(1) 32M x 64

(1) 32M x 64

(1) 2M x 64

544MB

(1) 32M x 64

(1) 32M x 64

(1) 4M x 64

576MB

(1) 32M x 64

(1) 32M x 64

(1) 8M x 64

640MB

(1) 32M x 64

(1) 32M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note:   Board supports SDRAM memory.
