EURONE

MS-7192S
Device Type Mainboard
Processor Celeron/Pentium II/Pentium III
Processor Speed 233/266/300/333/350/366/400/433/450/500MHz
Chip Set VIA Apollo
Audio Chip Set Unidentified
Maximum Onboard Memory 768MB (SDRAM supported)
Maximum Audio Memory Unidentified
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 305mm x 220mm
I/O Options 32-bit PCI slots (4), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, stereo in, stereo out, microphone in, audio in - CD-ROMs (2), Wake-on-LAN connector, Wake-on-Modem connector, SB-Link connector

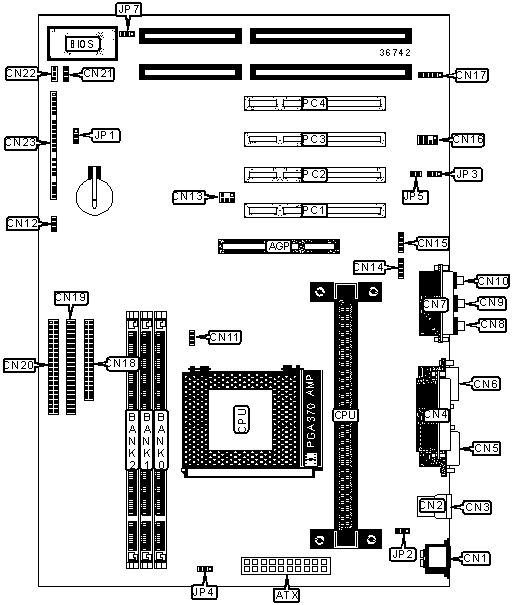

CONNECTIONS

Purpose

Location

Purpose

Location

AGP slot

AGP

SPDIF interface CN16
ATX power connector

ATX

IR connector CN17
PS/2 mouse port CN1 Floppy drive interface CN18
USB port 1 CN2 IDE interface 2 CN19
USB port 2 CN3 IDE interface 1 CN20
Parallel port CN4 Wake-on-LAN connector CN21
Serial port 1 CN5 Wake-on-modem connector CN22
Serial port 2 CN6 Power LED CN23/Pins 1-3
Game/MIDI port CN7 Green PC connector CN23/Pins 4 & 5
Stereo out CN8 Green PC LED CN23/Pins 7-9
Stereo in CN9 Keylock CN23/Pins 10 & 11
Microphone in CN10 Reset switch CN23/Pins 12 & 13
CPU fan power CN11 Speaker CN23/Pins 15-18
Chassis fan power CN12 IDE interface LED CN23/Pins 20 & 21
SB-Link connector CN13 Power switch CN23/Pins 22 & 23
Audio in - CD-ROM 1 CN14 32-bit PCI slots

PC1 - PC4
Audio in - CD-ROM 2 CN15


USER CONFIGURABLE SETTINGS

Function

Label

Position

» CMOS memory normal operation JP1 Pins 1 & 2 closed
  CMOS memory clear JP1 Pins 2 & 3 closed
  Keyboard power on disabled JP2 Pnis 1 & 2 closed
  Keyboard power on enabled JP2 Pins 2 & 3 closed
  On-board audio enabled JP3 Pins 1 & 2 closed
  On-board audio disabled JP3 Pins 2 & 3 closed
  System bus speed set to auto-detect JP4 Pins 1 & 2 closed
  System bus speed set to 100MHz JP4 Pins 2 & 3 closed
  SPDIF output voltage 5V JP5 Closed
  SPDIF output voltage 0.5V JP5 Open
  Flash Bios enabled JP7 Pins 1 & 2 closed
  Flash Bios disabled JP7 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

16MB

(1) 2M x 64

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note:  Board supports SDRAM memory.


CACHE CONFIGURATION

Note:  256KB/512KB cache is located on the Pentium II CPU.  128KB cache is located on the Celeron 300A and greater Celerons.


MISCELLANEOUS TECHNICAL NOTES

Board accepts the Celeron SEPP or the Celeron PPGA processors.  Only one processor may be installed on this board, either in slot 1 or in the Socket-370.
