EURONE

MS-6380SG
Device Type Mainboard
Processor CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/CX M2/AM K6/AM K6-2/Pentium/Pentium MMX/IDT C6
Processor Speed 75/90/100/120/133/150/166/200/225/233/240/266/300/333/350/366/ 380/400/450/475MHz
Chip Set SIS 530
Video Chip Set SIS
Audio Chip Set CMI
Maximum Onboard Memory 768MB (SDRAM supported)
Maximum Video Memory 8MB (shared from system memory)
Maximum Audio Memory Unidentified
Cache 1024/2048KB
BIOS AMI
Dimensions 245mm x 190mm
I/O Options 32-bit PCI slots (3), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, serial interface,  VGA port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), Wake on LAN connector

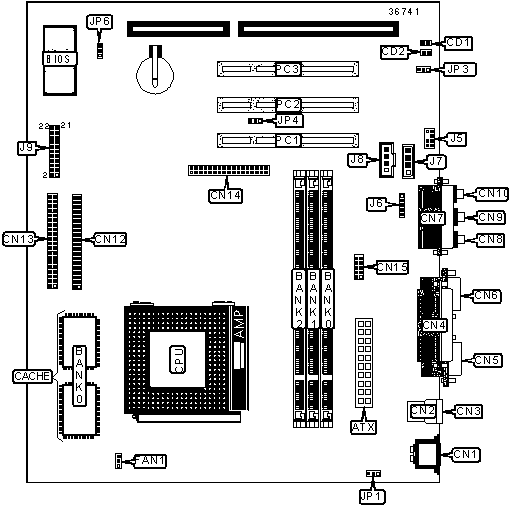

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Serial port 2 CN15
SPDIF in CD1 CPU fan power FAN1
PS/2 mouse port CN1 Wake on LAN connector JP4
USB connector 1 CN2 Digital audio connector J5
USB connector 2 CN3 IR connector J6
Parallel port CN4 Audio in - CD-ROM (Panasonic) J7
Serial port 1 CN5 Audio in - CD-ROM (Sony) J8
VGA port CN6 Speaker J9/Pins 1, 3, 5, 7
Game port CN7 Power LED & keylock J9/Pins 2, 4, 6, 8, 10
Line in/rear CN8 Turbo LED J9/Pins 13 & 14
Microphone in CN9 IDE interface LED J9/Pins 15 & 16
Line out CN10 Reset switch J9/Pins 17 & 18
IDE interface 2 CN12 Power button J9/Pins 21 & 22
IDE interface 1 CN13 32-bit PCI slots

PC1 - PC3
Floppy drive interface CN14


USER CONFIGURABLE SETTINGS

Function

Label

Position

» SPDIF out signal voltage selection 0.5v CD2 Open
  SPDIF out signal voltage selection 5v CD2 Closed

»

 Keyboard power on disabled JP1 Pins 1 & 2 closed
  Keyboard power on enabled JP1 Pins 2 & 3 closed
» On-board sound enabled JP3 Pins 2 & 3 closed



 On-board sound disabled JP3 Pins 1 & 2 closed
» CMOS memory normal operation JP6 Pins 1 & 2 closed
  CMOS memory clear JP6 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

4MB

(1) 512KB x 64

None

None

8MB

(1) 1M x 64

None

None

8MB

(1) 512KB x 64

(1) 512KB x 64

None

12MB

(1) 512KB x 64

(1) 512KB x 64

(1) 512KB x 64

16MB

(1) 2M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

20MB

(1) 1M x 64

(1) 1M x 64

(1) 512KB x 64

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

36MB

(1) 2M x 64

(1) 2M x 64

(1) 512KB x 64

40MB

(1) 2M x 64

(1) 2M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

68MB

(1) 4M x 64

(1) 4M x 64

(1) 512KB x 64

72MB

(1) 4M x 64

(1) 4M x 64

(1) 1M x 64

80MB

(1) 4M x 64

(1) 4M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 8M x 64

None

132MB

(1) 8M x 64

(1) 8M x 64

(1) 512KB x 64

136MB

(1) 8M x 64

(1) 8M x 64

(1) 1M x 64

144MB

(1) 8M x 64

(1) 8M x 64

(1) 2M x 64

160MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

260MB

(1) 16M x 64

(1) 16M x 64

(1) 512KB x 64

264MB

(1) 16M x 64

(1) 16M x 64

(1) 1M x 64

272MB

(1) 16M x 64

(1) 16M x 64

(1) 2M x 64

288MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

320MB

(1) 16M x 64

(1) 16M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

516MB

(1) 32M x 64

(1) 32M x 64

(1) 512KB x 64

520MB

(1) 32M x 64

(1) 32M x 64

(1) 1M x 64

528MB

(1) 32M x 64

(1) 32M x 64

(1) 2M x 64

544MB

(1) 32M x 64

(1) 32M x 64

(1) 4M x 64

576MB

(1) 32M x 64

(1) 32M x 64

(1) 8M x 64

640MB

(1) 32M x 64

(1) 32M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note:   Board supports SDRAM memory.
