DIAMOND MULTIMEDIA SYSTEMS, INC.
MICRONICS C300
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | AMI |
| Dimensions | 305mm x 190mm |
| I/O Options | 32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake on LAN connector, SB-Link connector |

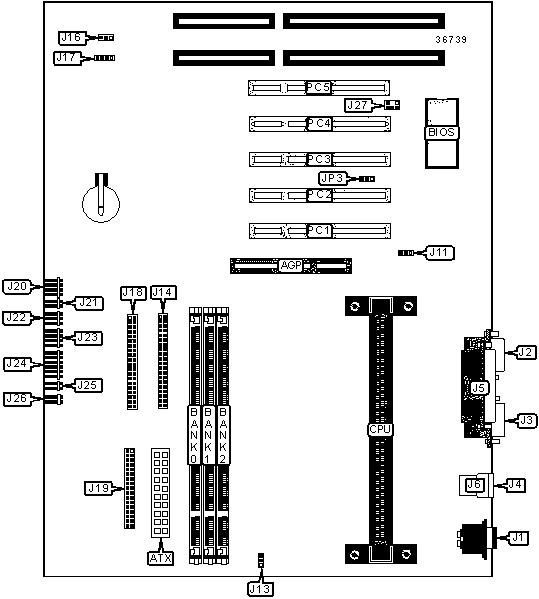

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Power LED & keylock | J17 |
| ATX power connector | ATX |
IDE interface 2 | J18 |
| PS/2 mouse port | J1 | Floppy drive interface | J19 |
| Serial port 1 | J2 | Speaker | J20 |
| Serial port 2 | J3 | Reset switch | J21 |
| USB port 1 | J4 | Power LED | J22 |
| Parallel port | J5 | IDE interface LED | J23 |
| USB port 2 | J6 | IR connector | J24 |
| Wake on LAN connector | J11 | Green PC connector | J25 |
| CPU fan power | J13 | Power switch | J26 |
| IDE interface 1 | J14 | SB-Link connector | J27 |
| Chassis fan power | J16 | 32-bit PCI slots | PC1 - PC5 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Wake-on-LAN high activity | JP3 | Pins 2 & 3 closed |
| Wake-on-LAN low activity | JP3 | Pins 1 & 2 closed | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
40MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
56MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A and greater CPUs. |
