DIAMOND FLOWER, INC.
PB64-V3 (REV. A+)
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentiuim III |
| Processor Speed | 233/266/300/333/350/366/400/433/450/500MHz |
| Chip Set | VIA |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 304mm x 170mm |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, game/MIDI port,, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROMs (3), Wake on LAN connector |

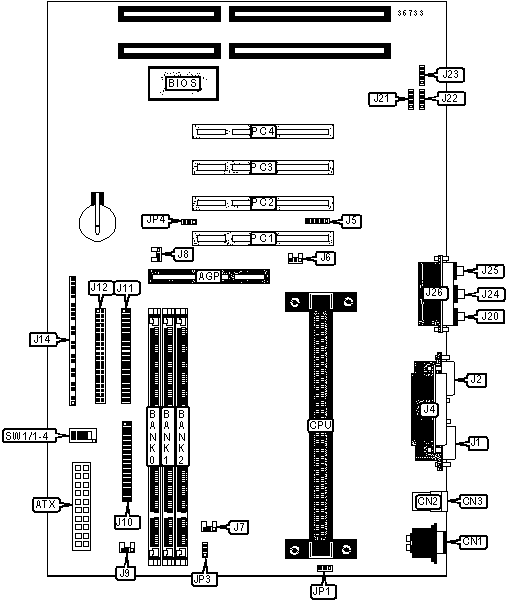

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
IDE interface LED | J14/Pins 1 & 2 |
| ATX power connector | ATX |
Green PC LED | J14/Pins 4 & 5 |
| PS/2 mouse port | CN1 | Power switch | J14/Pins 7 & 8 |
| USB port 1 | CN2 | Green PC connector | J14/Pins 10 & 11 |
| USB port 2 | CN3 | Reset switch | J14/Pins 13 & 14 |
| Serial port 1 | J1 | Speaker | J14/Pins 16-19 |
| Serial port 2 | J2 | Power LED & keylock | J14/Pins 21-25 |
| Parallel port | J4 | Line out | J20 |
| IR connector | J5 | Audio in - CD-ROM (Sony) | J21 |
| AGP fan power | J6 | Audio in - CD-ROM (Sony) | J22 |
| CPU fan power | J7 | Audio in - CD-ROM (Mitsumi) | J23 |
| Wake on LAN connector | J8 | Line in | J24 |
| Chassis fan power | J9 | Microphone in | J25 |
| Floppy drive interface | J10 | Game/MIDI port | J26 |
| IDE interface 1 | J11 | 32-bit PCI slots | PC1 - PC4 |
| IDE interface 2 | J12 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Keyboard/mouse power on disabled | JP1 | Pins 1 & 2 closed |
| Keyboard/mouse power on enabled | JP1 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JP4 | Pins 1 & 2 closed |
| CMOS memory clear | JP4 | Pins 2 & 3 closed | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II/Pentium III CPU. 128KB cache is located on the Celeron 300A and greater CPUs. |
CPU SPEED SELECTION (INTEL CELERON) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 |
SW1/3 | SW1/4 |
266MHz |
66MHz |
4x |
On | On | Off | On |
300MHz |
66MHz |
4.5x |
Off | On | Off | On |
333MHz |
66MHz |
5x |
On | Off | Off | On |
366MHz |
66MHz |
5.5x |
Off | Off | Off | On |
| 400MHz | 66MHz | 6x | On | On | On | Off |
| 433MHz | 66MHz | 6.5x | Off | On | On | Off |
CPU SPEED SELECTION (PENTIUM II) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 |
SW1/3 | SW1/4 |
233MHz |
66MHz |
3.5x |
Off | Off | On | On |
266MHz |
66MHz |
4x |
On | On | Off | On |
300MHz |
66MHz |
4.5x |
Off | On | Off | On |
333MHz |
66MHz |
5x |
On | Off | Off | On |
| 350MHz | 100MHz | 3.5x | Off | Off | On | On |
| 400MHz | 100MHz | 4x | On | On | Off | On |
| 450MHz | 100MHz | 4.5x | Off | On | Off | On |
CPU SPEED SELECTION (PENTIUM III) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 |
SW1/3 | SW1/4 |
| 450MHz | 100MHz | 4.5x | Off | On | Off | On |
| 500MHz | 100MHz | 5x | On | Off | Off | On |
BUS SPEED SELECTION |
||
| Setting | JP3 |
|
| » | Auto-detect |
Pins 1 & 2 closed |
66MHz |
pins 2 & 3 closed |
|
100MHz |
Open |
|
