ELITEGROUP COMPUTER SYSTEMS, INC.
P6SA-ME
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 233/266/300/333/350/400/450MHz |
| Chip Set | SIS |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 1.5GB (EDO & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 244mm x 197mm |
| I/O Options | 32-bit PCI slots (3), AGP slot, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, Wake-on LAN connector, Wake-on modem connector, game/MIDI port, line-out, line-in, microphone-in, audio in - CD-ROMs (2), mono sound-in |

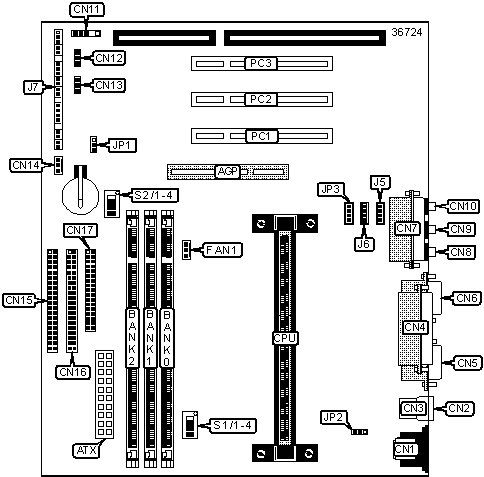

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | IDE interface 1 | CN15 |
| ATX power connector | ATX | IDE interface 2 | CN16 |
| PS/2 mouse port | CN1 | Floppy drive interface | CN17 |
| USB port 1 | CN2 | CPU fan power | FAN1 |
| USB port 2 | CN3 | Audio in - CD-ROM | J5 |
| Parallel port | CN4 | Auxiliary CD-ROM audio in connector | J6 |
| Serial port 1 | CN5 | Power LED | J7/Pins 1 - 3 |
| Serial port 2 | CN6 | Green PC switch | J7/Pins 4 & 5 |
| Game/MIDI port | CN7 | Green PC LED | J7/Pins 7 - 9 |
| Line out | CN8 | Key Lock connector | J7/Pins 10 & 11 |
| Line in | CN9 | Reset switch | J7/Pins 12 & 13 |
| Microphone in | CN10 | Speaker | J7/Pins 15 - 18 |
| IR connector | CN11 | IDE interface LED | J7/Pins 20 & 21 |
| Wake-on-modem connector | CN12 | Power switch | J7/Pins 22 & 23 |
| Wake-on-LAN connector | CN13 | Auxiliary mono sound input connector | JP3 |
| System fan power | CN14 | 32-bit PCI slots | PC1 - PC3 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP1 | Pins 2 & 3 closed |
| CMOS memory clear | JP1 | Pins 1 & 2 closed | |
» |
Keyboard power on disabled | JP2 | Pins 1 & 2 closed |
| Keyboard power on enabled | JP2 | Pins 2 & 3 closed | |
| » | Factory configured - do not alter | S1/4 | Off |
BUS FREQUENCY SELECTION |
|||||
System Bus |
AGP Bus |
PCI Bus |
S1/1 |
S1/2 | S1/3 |
| 60 | 60 | 30 | Off | Off | Off |
| 66.8 | 66.8 | 33.4 | On | Off | Off |
| 68.5 | 68.5 | 34.3 | Off | On | Off |
| 75 | 75 | 37.5 | On | On | Off |
| 75 | 64 | 32 | Off | Off | On |
| 83.3 | 66.6 | 33.3 | On | Off | On |
| 90 | 60 | 30 | Off | On | On |
| 100 | 66.6 | 33.3 | On | On | On |
SYSTEM BUS MULTIPLIER SELECTION |
||||
Setting |
S2/1 | S2/2 | S2/3 | S2/4 |
| 2x | Off | Off | Off | Off |
| 3x | Off | Off | Off | On |
| 4x | Off | Off | On | Off |
| 5x | Off | Off | On | On |
| 2/5x | Off | On | Off | Off |
| 2/7x | Off | On | Off | On |
| 2/9x | Off | On | On | Off |
| 2/11x | Off | On | On | On |
| 6x | On | Off | Off | Off |
| 7x | On | Off | Off | On |
| 8x | On | Off | On | Off |
| Reserved | On | Off | On | On |
| 2/13x | On | On | Off | Off |
| 2/15x | On | On | Off | On |
| 2/3x | On | On | On | Off |
| 2x | On | On | On | On |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 64M x 64 |
None |
None |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| 1024MB | (1) 64M x 64 | (1) 64M x 64 |
None |
| 1032MB | (1) 64M x 64 | (1) 64M x 64 | (1) 1M x 64 |
| 1040MB | (1) 64M x 64 | (1) 64M x 64 | (1) 2M x 64 |
| 1056MB | (1) 64M x 64 | (1) 64M x 64 | (1) 4M x 64 |
| 1088MB | (1) 64M x 64 | (1) 64M x 64 | (1) 8M x 64 |
| 1152MB | (1) 64M x 64 | (1) 64M x 64 | (1) 16M x 64 |
| 1280MB | (1) 64M x 64 | (1) 64M x 64 | (1) 32M x 64 |
| 1536MB | (1) 64M x 64 | (1) 64M x 64 | (1) 64M x 64 |
Note: Board supports EDO & SDRAM. Note: EDO & SDRAM can not be mixed. |
|||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
