ELITEGROUP COMPUTER SYSTEMS, INC.
P6EX-MM
| Device Type | Mainboard |
| Processor | Pentium II/Celeron |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | Unidentified |
| Video Chip Set | RIVA |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 256MB (SDRAM and EDO supported) |
| Maximum Video Memory | 4MB |
| Maximum Audio Memory | Unidentified |
| Cache | 128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (2), ATX power connector, audio in - CD-ROM, floppy drive interface, game/MIDI port, graphics feature connector, IDE interfaces (2), IR connectors (2), line in, line out, microphone in, parallel port, PS/2 mouse port, serial port, USB ports (2), Wake-on-LAN connector, Wake-on-modem connector, VGA port |

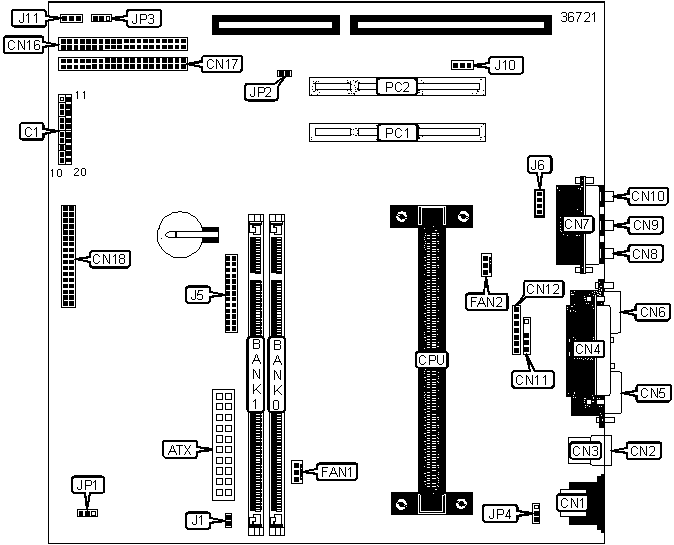

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| ATX power connector | ATX | Microphone in | CN10 |
| IDE interface LED | C1/Pins 1 & 2 | IR connector | CN11 |
| SMI switch | C1/Pins 4 & 5 | Fast IR connector | CN12 |
| Green PC switch | C1/Pins 6 & 7 | IDE interface 2 | CN16 |
| Reset switch | C1/Pins 9 & 10 | IDE interface 1 | CN17 |
| Keylock | C1/Pins 11 - 15 | Floppy drive interface | CN18 |
| Speaker | C1/Pins 17 - 20 | CPU fan power connector | FAN2 |
| PS/2 mouse port | CN1 | System fan power | FAN1 |
| USB 1 port | CN2 | Chassis intrusion connector | J1 |
| USB 2 port | CN3 | Graphics feature connector | J5 |
| Parallel port | CN4 | Audio in - CD-ROM | J6 |
| Serial port 1 | CN5 | Wake-On modem connector | J10 |
| VGA port | CN6 | Wake-On LAN connector | J11 |
| Game/MIDI port | CN7 | SCSI LED | JP2 |
| Line out | CN8 | 32-bit PCI slots | PC1 - PC2 |
| Line in | CN9 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Onboard video enabled | JP1 | Pins 1 & 2 closed |
| Onboard video disabled | JP1 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JP3 | Pins 2 & 3 closed |
| CMOS memory clear | JP3 | Pins 1 & 2 closed | |
» |
Power-on by keyboard enabled | JP4 | Pins 1 & 2 closed |
| Power-on by keyboard disabled | JP4 | Pins 2 & 3 closed | |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
16MB |
(1) 2M x 64 |
None |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
32MB |
(1) 4M x 64 |
None |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
64MB |
(1) 8M x 64 |
None |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A and greater CPU |
