ELITEGROUP COMPUTER SYSTEMS, INC.
P6BX-ME
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 233/266/300/333/350/400/450MHz |
| Chip Set | Intel 440BX |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 244mm x 244mm |
| I/O Options | 32-bit PCI slots (2), AGP slot, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connectors (2), USB ports (2), ATX power connector, Wake-On LAN connector, Wake-On modem connector, SB-Link connector, audio in - CD-ROMs (2), game/MIDI port, line out, line in, microphone in, thermal connector |

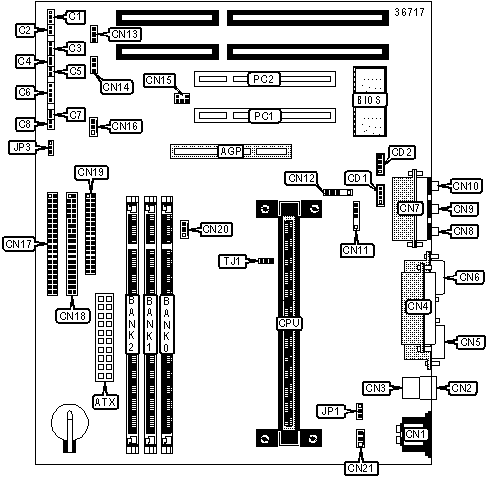

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | Game/MIDI port | CN7 |
| ATX power connector | ATX | Line out | CN8 |
| Power LED connector | C1 | Line in | CN9 |
| Green PC connector | C2 | Microphone in | CN10 |
| Green LED connector | C3 | Fast IR connector | CN11 |
| Keylock connector | C4 | IR connector | CN12 |
| Reset switch | C5 | Wake-On modem connector | CN13 |
| Speaker connector | C6 | Wake-On LAN connector | CN14 |
| IDE interface LED | C7 | SB-Link connector | CN15 |
| Power switch | C8 | System fan power | CN16 |
| Audio in - CD-ROM | CD1 | IDE interface 1 | CN17 |
| Audio in - CD-ROM | CD2 | IDE interface 2 | CN18 |
| PS/2 mouse port | CN1 | Floppy drive interface | CN19 |
| USB port 1 | CN2 | CPU fan power | CN20 |
| USB port 2 | CN3 | Power supply fan | CN21 |
| Parallel port | CN4 | 32-bit PCI slots | PC1 - PC2 |
| Serial port 1 | CN5 | Thermal connector (Thermistor Junction) | TJ1 |
| Serial port 2 | CN6 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Keyboard power on enabled (5V standby) | JP1 | Pins 1 & 2 Closed |
|
Keyboard power on disabled (Vcc) | JP1 | Pins 2 & 3 Closed |
» |
CMOS memory normal operation | JP3 | Pins 1 & 2 Closed |
| CMOS memory clear | JP3 | Pins 2 & 3 Closed | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: SDRAM memory is supported. PC-100 modules must be used if processor operates at a 100MHz bus. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II, III CPU. 128KB cache is located on the Celeron 300A and greater CPUs. |
