ELITEGROUP COMPUTER SYSTEMS, INC.
P6BA-A+
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | Unidentified |
| Chip Set | Elite |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (5), AGP slot, floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, Wake-On LAN connector, Wake-On modem connector, SB-Link connector |

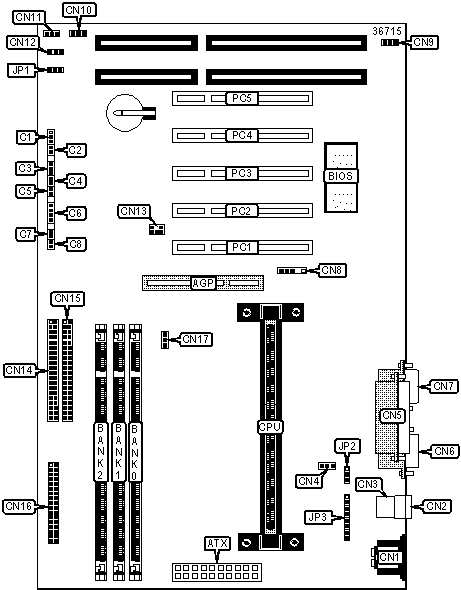

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | Parallel port | CN5 |
| ATX power connector | ATX | Serial port 1 | CN6 |
| Power LED connector | C1 | Serial port 2 | CN7 |
| Green PC connector | C2 | IR connector | CN8 |
| Green LED connector | C3 | Chassis intrusion connector | CN9 |
| Keylock connector | C4 | System fan power | CN10 |
| Reset switch | C5 | Wake-On LAN connector | CN11 |
| Speaker connector | C6 | Wake-On modem connector | CN12 |
| IDE interface LED | C7 | SB-Link connector | CN13 |
| Power switch | C8 | IDE interface 1 | CN14 |
| PS/2 mouse port | CN1 | IDE interface 2 | CN15 |
| USB port 1 | CN2 | Floppy drive interface | CN16 |
| USB port 2 | CN3 | CPU fan power | CN17 |
| ATX fan power | CN4 | 32-bit PCI slots | PC1 - PC5 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP1 | Pins 1 & 2 Closed |
| CMOS memory clear | JP1 | Pins 2 & 3 Closed for 10 seconds | |
» |
Keyboard power up enabled | JP2 | Pins 2 & 3 Closed |
| Keyboard power up disabled | JP2 | Pins 1 & 2 Closed | |
| » | PS/2 keyboard and mouse enabled | JP3 | Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 Closed |
| PS/2 keyboard and mouse disabled | JP3 | Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 Open | |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: SDRAM memory is supported | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II, III CPU. 128KB cache is located on the Celeron 300A and greater CPUs. |
