IWILL CORPORATION

LE370
Device Type Mainboard
Processor Celeron
Processor Speed 233/266/300/333/366/400/433/466/500/533MHz
Chip Set Intel 440LX
Audio Chip Set Aurel
Maximum Onboard Memory 768MB (EDO & SDRAM supported)
Maximum Audio Memory Unidentified
Cache 0/128KB (located on the Celeron CPU)
BIOS Award
Dimensions 189mm x 305mm
I/O Options 32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on LAN connector, SB-Link connector, audio in - CD-ROM, AUX audio-in, line out, line in, microphone in, game/MIDI port, SMBus connector, Wake-on modem connector

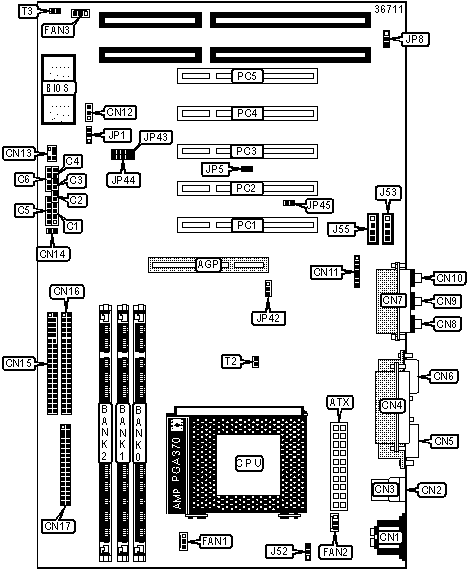

CONNECTIONS

Purpose

Location

Purpose

Location
AGP slot AGP IR connector CN11
ATX power connector ATX System fan power FAN3
ACPI LED C1 Wake-on LAN connector CN12
IDE interface LED C2 SB-Link connector CN13
Unidentified C3 Power switch CN14
Reset switch C4 IDE interface 1 CN15
Power LED & keylock C5 IDE interface 2 CN16
Speaker C6 Floppy drive interface CN17
PS/2 mouse port CN1 CPU fan power FAN1
USB port 1 CN2 System fan power FAN2
USB port 2 CN3 Auxiliary in J53
Parallel port CN4 Audio in - CD-ROM J55
Serial port 1 CN5 SMBus connector JP43
Serial port 2 CN6 Wake-on modem connector JP44
Game/MIDI port CN7 Chassis intrusion connector JP45
Line out CN8 32-bit PCI slots PC1 - PC5
Line in CN9 Temperature sensor connector T2
Microphone in CN10 Temperature sensor connector T3


USER CONFIGURABLE SETTINGS

Function

Label

Position

  Keyboard power-on disabled J52 Unidentified
  Keyboard power-on enabled J52 Unidentified

»

 CMOS memory normal operation JP1 Pins 1 & 2 closed
  CMOS memory clear JP1 Pins 2 & 3 closed



 Factory configured - do not alter JP5 Unidentified
  On board audio enabled JP8 Pins 1 & 2 closed
  On board audio disabled JP8 Pins 2 & 3 closed
  Keyboard power-on password enabled JP42 Pins 1 & 2 closed
  Clear keyboard power-on password JP42 Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(1) 1M x 64

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

16MB

(1) 2M x 64

None

None

24MB

(1) 1M x 64

(1) 1M x 64

(1) 1M x 64

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

32MB

(1) 2M x 64

(1) 1M x 64

(1) 1M x 64

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

48MB

(1) 4M x 64

(1) 1M x 64

(1) 1M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

80MB

(1) 8M x 64

(1) 1M x 64

(1) 1M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

144MB

(1) 16M x 64

(1) 1M x 64

(1) 1M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 32M x 64

None

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

272MB

(1) 32M x 64

(1) 1M x 64

(1) 1M x 64

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

384MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

512MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64
Note: Board supports EDO & SDRAM memory. Maximum EDO is 384MB. Maximum SDRAM is 768 MB.

Note: EDO & SDRAM can not be mixed.


CACHE CONFIGURATION
Note: 128KB cache is located on the Celeron 300A and greater CPUs.
