IWILL CORPORATION
VD100
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/350/366/400/433/450/466/500/550MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 1GB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 188mm x 305mm |
| I/O Options | 32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on LAN connector, SB-Link connector |

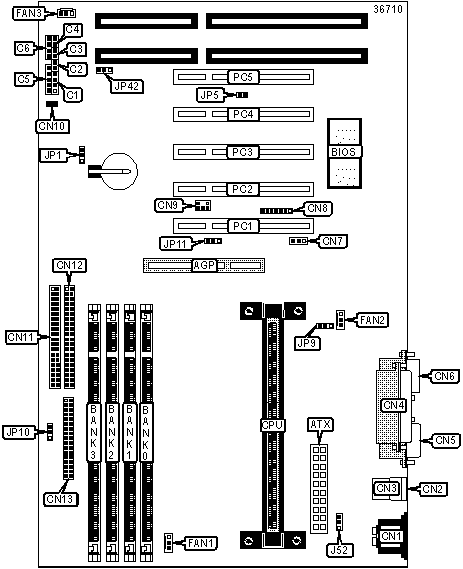

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | Serial port 2 | CN6 |
| ATX power connector | ATX | Wake-on LAN connector | CN7 |
| ACPI LED connector | C1 | IR connector | CN8 |
| IDE interface LED | C2 | SB-Link connector | CN9 |
| Unidentified | C3 | Power switch | CN10 |
| Reset switch | C4 | IDE interface 1 | CN11 |
| Power LED & keylock | C5 | IDE interface 2 | CN12 |
| Speaker | C6 | Floppy drive interface | CN13 |
| PS/2 mouse port | CN1 | CPU fan power | FAN1 |
| USB port 1 | CN2 | System fan power | FAN2 |
| USB port 2 | CN3 | System fan power | FAN3 |
| Parallel port | CN4 | 32-bit PCI slots | PC1 - PC5 |
| Serial port 1 | CN5 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | PS/2 power-on disabled | J52 | Pins 1 & 2 closed |
| PS/2 power-on enabled | J52 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JP1 | Pins 1 & 2 closed |
| CMOS memory clear | JP1 | Pins 2 & 3 closed | |
|
Factory configured - do not alter | JP5 | Unidentified |
| » | CPU frequency is 100MHz | JP11 | Pins 1 & 2 closed |
| CPU frequency is 66MHz | JP11 | Pins 2 & 3 closed | |
| Keyboard power-on password enabled | JP42 | Pins 1 & 2 closed | |
| Clear keyboard power-on password | JP42 | Pins 2 & 3 closed | |
| DIMM CONFIGURATION | ||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
8MB |
(1) 1M x 64 |
None |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
32MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
32MB |
(1) 4M x 64 |
None |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
64MB |
(1) 8M x 64 |
None |
None |
None |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
128MB |
(1) 16M x 64 |
None |
None |
None |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
256MB |
(1) 32M x 64 |
None |
None |
None |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
None |
528MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
544MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
576MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
640MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
1024MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO
& SDRAM memory. Note: EDO & SDRAM can not be mixed. |
||||
VCORE SELECTION |
||
Setting |
JP9 |
|
| » | Automatic Vcore voltage is generated | Open |
| Voltage to Vcore is increased by 5% | Pins 1 & 2 closed | |
| Voltage to Vcore is increased by 10% | Pins 2 & 3 closed | |
VIO SELECTION |
||
Setting |
JP10 |
|
| » | VIO is 3.5V | Open |
| VIO is 3.6V | Pins 1 & 2 closed | |
| VIO is 3.8V | Pins 2 & 3 closed | |
CACHE CONFIGURATION |
| Note: 256/512KB cache is located on the Pentium II & Pentium III CPUs. 128KB cache is located on the Celeron 300A and greater CPUs. |
