FREE COMPUTER TECHNOLOGY, INC.
P6F109VIA
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/350/366/400/433/450/466/500/533MHz |
| Chip Set | VIA |
| Audio Chip Set | Creative Labs |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 244mm x 210mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROMs (2), SB-Link connector, Wake-on-LAN connector, modem voice input connectors (2) |

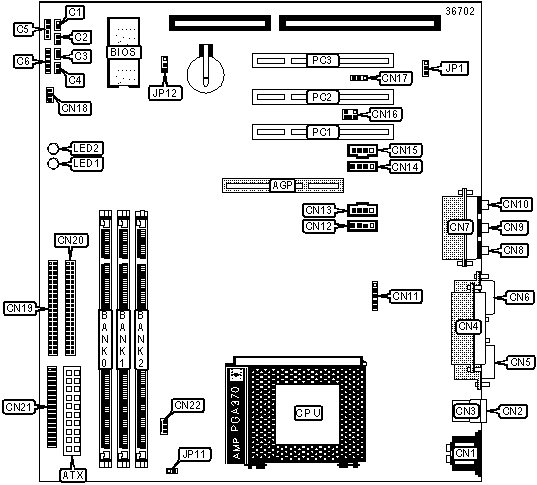

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP | Line in | CN9 |
| ATX power connector | ATX | Microphone in | CN10 |
| IDE interface LED | C1 | IR connector | CN11 |
| Standby LED | C2 | Modem voice input connector 1 (JST type) | CN12 |
| Reset switch | C3 | Modem voice input connector 2 (MPC2 type) | CN13 |
| Power switch | C4 | Audio in - CD-ROM (Mitsumi) | CN14 |
| Speaker | C5 | Audio in - CD-ROM (Sony) | CN15 |
| Power LED & keylock | C6 | SB-Link connector | CN16 |
| PS/2 mouse port | CN1 | Wake-on-LAN connector | CN17 |
| USB port 1 | CN2 | Secondary fan power | CN18 |
| USB port 2 | CN3 | IDE interface 1 | CN19 |
| Parallel port | CN4 | IDE interface 2 | CN20 |
| Serial port 1 | CN5 | Floppy drive interface | CN21 |
| Serial port 2 | CN6 | CPU fan power | CN22 |
| Game/MIDI port | CN7 | 32-bit PCI slots | PC1-PC3 |
| Line out | CN8 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| » | Onboard audio enabled | JP1 | Pins 2 & 3 closed |
| Onboard audio disabled | JP1 | Pins 1 & 2 closed | |
| » | AGP FSB (Front Side Bus) speed enabled | JP11 | Closed |
| AGP FSB (Front Side Bus) speed disabled | JP11 | Open | |
» |
CMOS memory normal operation | JP12 | Pins 1 & 2 closed |
| CMOS memory clear | JP12 | Pins 2 & 3 closed | |
| Note: If AGP FSB speed is disabled, a 66MHz FSB CPU will be overclocked to 100MHz. | |||
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO
& SDRAM memory. Note: EDO & SDRAM can not be mixed. |
|||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A and greater CPUs. |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Green |
On |
CPU is not installed or mainboard failure |
LED1 |
Green |
Blinking |
Memory failure |
| LED1 | Green | Off | Normal operation |
LED2 |
Red |
On |
Memory failure |
| LED2 | Red | On | Video failure |
LED2 |
Red | Off | Normal operation |
