EPOX COMPUTER CO., LTD.
KP6-BS (SMP)
| Device Type | Mainboard |
| Processor | Pentium II (2) |
| Processor Speed | 233/266/300/333/350/400/450MHz |
| Chip Set | Intel 440BX |
| Maximum Onboard Memory | 1GB (EDO & SDRAM supported) |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 330mm x 218mm |
| I/O Options | 32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, SB-link connector, Wake-on-LAN connector |

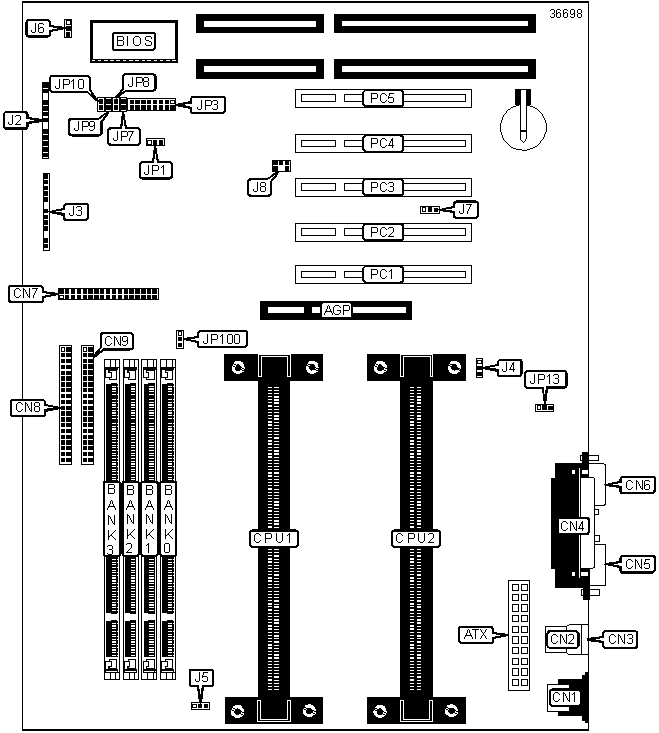

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | PC speaker | J2/Pins 4 - 7 |
| ATX power connector | ATX | Power LED & keylock | J2/Pins 9 - 13 |
| PS/2 mouse port | CN1 | IR connector | J3/Pins 1 - 5 |
| USB port 2 | CN2 | IDE interface LED | J3/Pins 7 & 8 |
| USB port 1 | CN3 | Turbo LED | J3/Pins 9 & 10 |
| Parallel port | CN4 | Power switch | J3/Pins 12 & 13 |
| Serial port 1 | CN5 | CPU 1 fan power | J4 |
| Serial port 2 | CN6 | CPU 2 fan power | J5 |
| Floppy drive interface | CN7 | Chassis fan power | J6 |
| IDE interface 1 | CN8 | Wake-on-LAN connector | J7 |
| IDE interface 2 | CN9 | SB-link connector | J8 |
| Reset switch | J2/Pins 1 & 2 | 32-bit PCI slots | PC1 - PC5 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP1 | Pins 1 & 2 closed |
| CMOS memory clear | JP1 | Pins 2 & 3 closed | |
| » | Factory configured - do not alter | JP3/Pins 13 & 14 | Unidentified |
| » | ESSJ (JP3) selection of CPU speed enabled | JP3/Pins 15 & 16 | Open |
| ESSJ (JP3) selection of CPU speed disabled | JP3/Pins 15 & 16 | Closed | |
| » | Factory configured - do not alter | JP7 | Unidentified |
| » | Factory configured - do not alter | JP8 | Unidentified |
| » | Factory configured - do not alter | JP9 | Unidentified |
| » | Factory configured - do not alter | JP10 | Unidentified |
» |
Power-on keyboard disabled | JP13 |
Pins 2 & 3 closed |
| Power-on keyboard enabled | JP13 |
Pins 1 & 2 closed |
|
» |
SDRAM clock speed set automatically | JP100 |
Pins 1 & 2 closed |
|
SDRAM clock speed set to 100MHz | JP100 |
Pins 2 & 3 closed |
DIMM CONFIGURATION |
||||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
8MB |
(1) 1M x 64 |
None |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
None |
16MB |
(1) 2M x 64 |
None |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
None |
32MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
None |
32MB |
(1) 4M x 64 |
None |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
None |
64MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
None |
64MB |
(1) 8M x 64 |
None |
None |
None |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
None |
128MB |
(1) 16M x 64 |
None |
None |
None |
144MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
None |
256MB |
(1) 32M x 64 |
None |
None |
None |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
None |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
None |
528MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
544MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
576MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
640MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
None |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
1024MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. If using the 100MHz FSB, 100MHz SDRAM should be used. | ||||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. |
CPU SPEED SELECTION |
|||
CPU speed |
Clock speed |
JP3 |
|
200MHz |
66MHz |
Pins 1 & 2 closed | |
233Mhz |
66MHz |
Pins 3 & 4 closed | |
| » | 266MHz |
66MHz |
Pins 5 & 6 closed |
300MHz |
66MHz |
Pins 7 & 8 closed | |
300MHz |
100MHz |
Pins 1 & 2 closed | |
333MHz |
66MHz |
Pins 9 & 10 closed | |
350MHz |
100MHz |
Pins 3 & 4 closed | |
| 366MHz | 66MHz | Pins 11 & 12 closed | |
400MHz |
100MHz |
Pins 5 & 6 closed | |
450MHz |
100MHz |
Pins 7 & 8 closed | |
500MHz |
100MHz |
Pins 9 & 10 closed | |
550MHz |
100MHz |
Pins 11 & 12 closed | |
| Automatic CPU speed selection | Pins 13 & 14 closed | ||
Note: Designated pins should be in the closed position |
|||
