EPOX COMPUTER CO., LTD.
P2-100Y
| Device Type | Mainboard |
| Processor | Pentium II |
| Processor Speed | 233/266/300/333/350/366/400/450/500/550/600MHz |
| Chip Set | VIA |
| Audio Chip Set | Yamaha |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 256/512KB (located on the Pentium II CPU) |
| BIOS | Award |
| Dimensions | 330mm x 218mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, audio in - CD-ROMs (2), Wake-on-LAN connector |

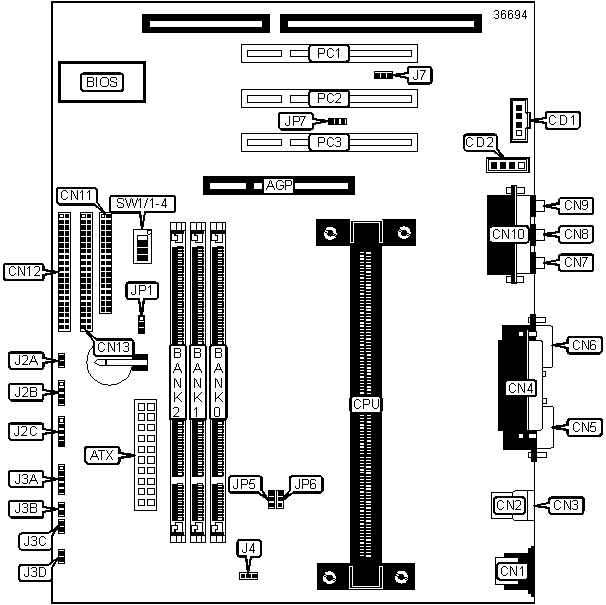

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | IDE interface 2 | CN13 |
| ATX power connector | ATX | Audio in - CD-ROM (Sony) | CN1 |
| PS/2 mouse port | CN1 | Audio in - CD-ROM (Mitsumi) | CN2 |
| USB port 1 | CN2 | Reset switch | J2A |
| USB port 2 | CN3 | PC speaker | J2B |
| Parallel port | CN4 | Power LED & Keylock | J2C |
| Serial port 1 | CN5 | IR connector | J3A |
| Serial port 2 | CN6 | IDE interface LED | J3B |
| Speaker/Line out | CN7 | Turbo LED | J3C |
| Line in | CN8 | Power switch | J3D |
| Microphone in | CN9 | CPU fan power | J4 |
| Game/MIDI port | CN10 | Wake-on-LAN connector | J7 |
| Floppy drive interface | CN11 | 32-bit PCI slots | PC1 - PC3 |
| IDE interface 1 | CN12 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP1 | Pins 1 & 2 closed |
| CMOS memory clear | JP1 | Pins 2 & 3 closed | |
| CPU bus clock speed set to 66MHz | JP5 | Pins 1 & 2 closed | |
|
CPU bus clock speed set to 100MHz | JP5 |
Pins 2 & 3 closed |
| DIMM clock speed set to match CPU speed | JP6 |
Pins 1 & 2 closed |
|
| DIMM clock speed set to match AGP speed | JP6 |
Pins 2 & 3 closed |
|
| On board sound enabled | JP7 |
Pins 1 & 2 closed |
|
| On board sound disabled | JP7 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPUs. |
CPU SPEED SELECTION |
|||||
CPU speed |
Clock speed |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
200MHz |
66MHz |
On | Off | On | On |
233MHz |
66MHz |
On | Off | Off | On |
266MHz |
66MHz |
Off | On | On | On |
300MHz |
66MHz |
Off | On | Off | On |
| 300MHz | 100MHz | On | Off | On | On |
333MHz |
66MHz |
Off | Off | On | On |
| 350MHz | 100MHz | On | Off | Off | On |
366MHz |
66MHz |
Off | Off | Off | On |
| 400MHz | 66MHz | On | On | On | Off |
| 400Mhz | 100MHz | Off | On | On | On |
| 450MHz | 100MHz | Off | On | Off | On |
| 500MHz | 100MHz | Off | Off | On | On |
| 550MHz | 100MHz | Off | Off | Off | On |
| 600MHz | 100MHz | On | On | On | Off |
