GIGA-BYTE TECHNOLOGY CO., LTD.
GA-6VA7 (REV. 1.2)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 366/400/433/466/500/533/566MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 241mm x 222mm |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel interface, PS/2 mouse interface, serial interfaces (2), IR connector, USB interface, ATX power connector, AGP slot, Wake-on-LAN connector, Power-on-ring connector |

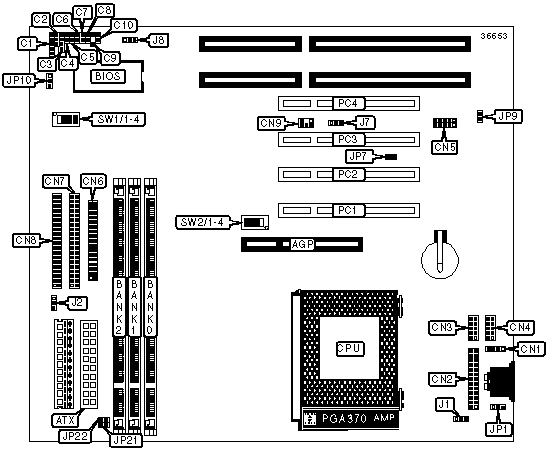

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | Serial interface 2 | CN3 |
| ATX power connector | ATX | Serial interface 1 | CN4 |
| IR connector | C1 | USB interface | CN5 |
| Power LED | C2 | Floppy drive connector | CN6 |
| PC speaker | C3 | IDE interface 2 | CN7 |
| Turbo LED | C4 | IDE interface 1 | CN8 |
| Turbo switch | C5 | SB-link connector | CN9 |
| Reset switch | C6 | CPU fan power | J1 |
| Green PC LED | C7 | Power fan | J2 |
| Green PC connector | C8 | Wake-on-LAN connector | J7 |
| IDE interface LED | C9 | System fan power | J8 |
| Power switch | C10 | Power-on-ring connector | JP7 |
| PS/2 mouse interface | CN1 | Case open connector | JP9 |
| Parallel interface | CN2 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
|
Keyboard power-on disabled | JP1 | Pins 2 & 3 closed |
| Keyboard power-on enabled | JP1 | Pins 1 & 2 closed | |
| » | CMOS normal operation | JP10 | Pins 1 & 2 closed |
|
CMOS clear memory | JP10 |
Pins 2 & 3 closed |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A & 333 CPU. |
CPU SPEED SELECTION |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
366MHz |
66MHz |
5.5x |
Off | Off | Off | On |
400MHz |
66MHz |
6x |
On | On | On | Off |
433MHz |
66MHz |
6.5x |
Off | On | On | Off |
466MHz |
66MHz |
7x |
On | Off | On | Off |
500MHz |
66MHz |
7.5x |
Off | Off | On | Off |
533MHz |
66MHz |
8x |
On | On | Off | Off |
566MHz |
66MHz |
8.5x |
Off | On | Off | Off |
CPU SPEED SELECTION (CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 | SW2/2 | SW2/3 | SW2/4 |
366MHz |
66MHz |
5.5x |
On | Off | Off | On |
400MHz |
66MHz |
6x |
On | Off | Off | On |
433MHz |
66MHz |
6.5x |
On | Off | Off | On |
466MHz |
66MHz |
7x |
On | Off | Off | On |
500MHz |
66MHz |
7.5x |
On | Off | Off | On |
533MHz |
66MHz |
8x |
On | Off | Off | On |
566MHz |
66MHz |
8.5x |
On | Off | Off | On |
VIDEO MODE SELECTION |
||
| Setting | JP21 | JP22 |
| Normal operation | Open | Open |
| Voodoo3 VGA installed | Closed | Closed |
