GIGA-BYTE TECHNOLOGY CO., LTD.
GA-6VX7 (REV. 1.3)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 366/400/433/466/500/533/566MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Cache | 0/128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 305mm x 190mm |
| I/O Options | 32-bit PCI slots (5), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, Wake-on-LAN connector, Power-on-ring connector, SB-link connector |

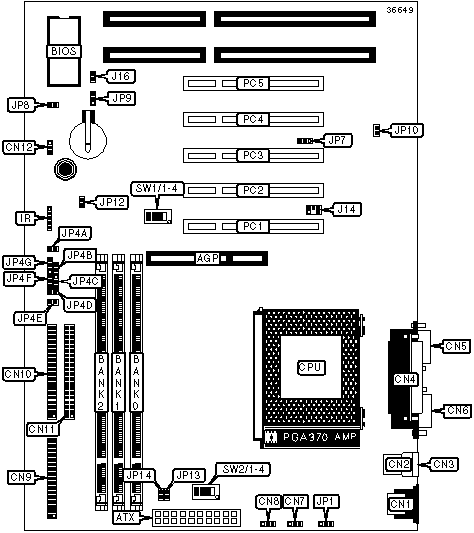

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | IR connector | IR |
| ATX power connector | ATX | SB-Link connector | J14 |
| PS/2 mouse port | CN1 | Power-on-ring connector | J16 |
| USB connector 1 | CN2 | Green PC LED | JP4A |
| USB connector 2 | CN3 | Power switch | JP4B |
| Parallel port | CN4 | Power LED | JP4C |
| Serial port 1 | CN5 | IDE interface LED | JP4D |
| Serial port 2 | CN6 | Green PC connector | JP4E |
| CPU fan power | CN7 | PC speaker | JP4F |
| Power fan | CN8 | Reset switch | JP4G |
| Floppy drive connector | CN9 | Wake-on-LAN connector | JP7 |
| IDE interface 1 | CN10 | Case open connector | JP10 |
| IDE interface 2 | CN11 | 32-bit PCI slots | PC1 - PC5 |
| System fan power | CN12 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Keyboard power-on disabled | JP1 | Pins 2 & 3 closed |
| Keyboard power-on enabled | JP1 | Pins 1 & 2 closed | |
| » | CMOS normal operation | JP9 | Pins 2 & 3 closed |
|
CMOS clear memory | JP9 |
Pins 1 & 2 closed |
| Internal buzzer enabled | JP12 | Closed | |
| Internal buzzer disabled | JP12 | Open | |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB* |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
288MB* |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB* |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB* |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB* |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB* |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB* |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO
& SDRAM memory. Maximum SDRAM is 768MB. Maximum EDO is 384MB. *Note: Designated configuration requires EDO memory. |
|||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A & 333 CPU. |
CPU SPEED SELECTION |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
366MHz |
66MHz |
5.5x |
Off | Off | Off | On |
400MHz |
66MHz |
6x |
On | On | On | Off |
433MHz |
66MHz |
6.5x |
Off | On | On | Off |
466MHz |
66MHz |
7x |
On | Off | On | Off |
500MHz |
66MHz |
7.5x |
Off | Off | On | Off |
533MHz |
66MHz |
8x |
On | On | Off | Off |
| 566MHz | 66MHz | 8.5x | Off | On | Off | Off |
CPU SPEED SELECTION (CONT) |
||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 | SW2/2 | SW2/3 | SW2/4 |
366MHz |
66MHz |
5.5x |
On | Off | Off | On |
400MHz |
66MHz |
6x |
On | Off | Off | On |
433MHz |
66MHz |
6.5x |
On | Off | Off | On |
466MHz |
66MHz |
7x |
On | Off | Off | On |
500MHz |
66MHz |
7.5x |
On | Off | Off | On |
533MHz |
66MHz |
8x |
On | Off | Off | On |
| 566MHz | 66MHz | 8.5x | On | Off | Off | On |
VIDEO MODE SELECTION |
||
Setting |
JP13 |
JP14 |
Normal operation |
Open |
Open |
Voodoo3 VGA card installed |
Closed |
Closed |
