DIAMOND FLOWER, INC.
K6BV3+ (REV. A+)
| Device Type | Mainboard |
| Processor | CX 6X86L/CX 686MX/IBM 6X86MX/CX M2/IDT C6/IDT WinCHIP2/AM K5/AM K6/AM K6-2/AM K6-3/Pentium/Pentium MMX |
| Processor Speed | 100/133/166/200/225/233/266/300/333/350/366/380/400/450/475/500MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 768MB (SDRAM supported) |
| Cache | 1024/2048KB |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial interfaces (2), IR connector, USB connectors (2), ATX power connector, AGP slot |

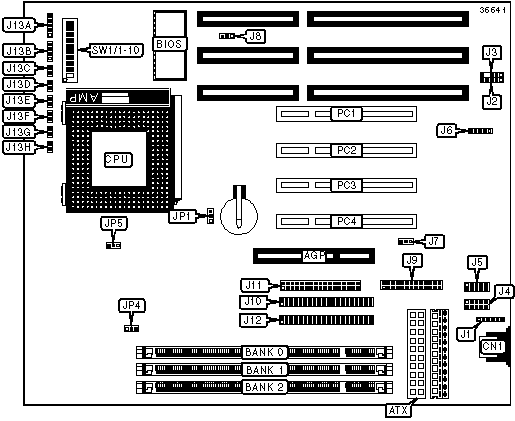

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP | IDE interface 2 | J10 |
| ATX power connector | ATX | Floppy drive interface | J11 |
| PS/2 mouse port | CN1 | IDE interface 1 | J12 |
| PS/2 mouse interface | J1 | Power LED & keylock | J13A |
| USB interface 2 | J2 | PC speaker | J13B |
| USB interface 1 | J3 | Reset switch | J13C |
| Serial interface 1 | J4 | Green PC connector | J13D |
| Serial interface 2 | J5 | Green PC LED | J13E |
| IR connector | J6 | IDE interface LED | J13F |
| AGP fan power | J7 | Power switch | J13G |
| CPU fan power | J8 | Power stand-by LED | J13H |
| Parallel interface | J9 | 32-bit PCI slots | PC1 - PC4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP1 | Pins 2 & 3 closed |
| CMOS memory clear | JP1 | Pins 1 & 2 closed | |
| » | SDRAM clock speed set by AGP clock | JP4 | Pins 1 & 2 closed |
|
SCRAM clock speed set by CPU clock | JP4 |
Pins 2 & 3 closed |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports SDRAM memory. | |||
CPU SPEED SELECTION (CX 6X86L) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
166MHz |
66MHz |
2x |
Off | On | On | On | Off | Off |
200MHz |
75MHz |
2x |
Off | Off | On | On | Off | Off |
CPU SPEED SELECTION (CX 6X68MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
200MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
233MHz |
75MHz |
2.5x |
Off | Off | On | On | On | Off |
266MHz |
83MHz |
2.5x |
Off | On | Off | On | On | Off |
CPU SPEED SELECTION (CX M2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
200MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
266MHz |
66MHz |
3x |
Off | On | On | Off | On | Off |
300MHz |
66MHz |
3.5x |
Off | On | On | Off | Off | Off |
300MHz |
75MHz |
3x |
Off | Off | On | Off | On | Off |
| 333MHz | 66MHz | 4x | Off | On | On | On | Off | On |
| 333MHz | 75MHz | 3.5x | Off | Off | On | Off | Off | Off |
| 333MHz | 83MHz | 3x | Off | On | Off | Off | On | Off |
| 366MHz | 83MHz | 3.5x | Off | On | Off | Off | Off | Off |
| 366MHz | 100MHz | 2.5x | Off | Off | Off | On | On | Off |
| 380MHz | 100MHz | 3x | Off | Off | Off | Off | On | Off |
| 400MHz | 95MHz | 3.5x | On | Off | Off | Off | Off | Off |
CPU SPEED SELECTION (IBM 6X68MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
200MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
233MHz |
75MHz |
2.5x |
Off | Off | On | On | On | Off |
266MHz |
83MHz |
2.5x |
Off | On | Off | On | On | Off |
300MHz |
66MHz |
3.5x |
Off | On | On | Off | Off | Off |
| 300MHz | 75MHz | 3x | Off | Off | On | Off | On | Off |
| 333MHz | 83MHz | 3x | Off | On | Off | Off | On | Off |
CPU SPEED SELECTION (AM K5) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
100MHz |
66MHz |
1.5x |
Off | On | On | Off | Off | Off |
133MHz |
66MHz |
2x |
Off | On | On | On | Off | Off |
166MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
CPU SPEED SELECTION (AM K6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
166MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
200MHz |
66MHz |
3x |
Off | On | On | Off | On | Off |
| 233MHz | 66MHz | 3.5x | Off | On | On | Off | Off | Off |
| 266MHz | 66MHz | 4x | Off | On | On | On | Off | On |
| 300MHz | 66MHz | 4.5x | Off | On | On | On | On | On |
CPU SPEED SELECTION (AM K6-2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
250MHz |
100MHz |
2.5x |
Off | Off | Off | On | On | Off |
266MHz |
66MHz |
4x |
Off | On | On | On | Off | On |
300MHz |
66MHz |
4.5x |
Off | On | On | On | On | On |
300MHz |
100MHz |
3x |
Off | Off | Off | Off | On | Off |
| 333MHz | 66MHz | 5x | Off | On | On | Off | On | On |
| 333MHz | 95MHz | 3.5x | On | Off | Off | Off | Off | Off |
| 350MHz | 100MHz | 3.5x | Off | Off | Off | Off | Off | Off |
| 366MHz | 66MHz | 5.5x | Off | On | On | Off | Off | On |
| 380MHz | 95MHz | 4x | On | Off | Off | On | Off | On |
| 400MHz | 100Mhz | 4x | Off | Off | Off | On | Off | On |
| 450MHz | 100MHz | 4.5x | Off | Off | Off | On | On | On |
| 475MHz | 95MHz | 5x | On | Off | Off | Off | On | On |
| 500MHz | 100MHz | 5x | Off | Off | Off | Off | On | On |
CPU SPEED SELECTION (AM K6-3) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
400MHz |
100MHz |
4x |
Off | Off | Off | On | Off | On |
450MHz |
100MHz |
4.5x |
Off | Off | Off | On | On | On |
475MHz |
95MHz |
5x |
On | Off | Off | Off | On | On |
500MHz |
100MHz |
5x |
Off | Off | Off | Off | On | On |
CPU SPEED SELECTION (IDT C6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
200MHz |
66MHz |
3x |
Off | On | On | Off | On | Off |
225MHz |
75MHz |
3x |
Off | Off | On | Off | On | Off |
CPU SPEED SELECTION (IDT WinChip2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
200MHz |
66MHz |
3x |
Off | On | On | Off | On | Off |
225MHz |
75MHz |
3x |
Off | Off | On | Off | On | Off |
233MHz |
66MHz |
3.5x |
Off | On | On | Off | Off | Off |
266MHz |
100MHz |
2.33x |
Off | Off | Off | Off | On | On |
| 300MHz | 100MHz | 2.5x | Off | Off | Off | On | On | Off |
CPU SPEED SELECTION (PENTIUM) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
100MHz |
66MHz |
1.5x |
Off | On | On | Off | Off | Off |
133MHz |
66MHz |
2x |
Off | On | On | On | Off | Off |
166MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
200MHz |
66MHz |
3x |
Off | On | On | Off | On | Off |
CPU SPEED SELECTION (PENTIUM MMX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
166MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
200MHz |
66MHz |
3x |
Off | On | On | Off | On | Off |
| 233MHz | 66MHz | 3.5x | Off | On | On | Off | Off | Off |
CPU VOLTAGE SELECTION |
|||||
Voltage |
JP5 | SW1/7 | SW1/8 | SW1/9 | SW1/10 |
| 2.0V | 1 & 2 | Off | Off | Off | Off |
| 2.1V | 1 & 2 | On | Off | Off | Off |
| 2.2V | 1 & 2 | Off | On | Off | Off |
| 2.3V | 1 & 2 | On | On | Off | Off |
| 2.4V | 1 & 2 | Off | Off | On | Off |
| 2.5V | 1 & 2 | On | Off | On | Off |
| 2.6V | 1 & 2 | Off | On | On | Off |
| 2.7V | 1 & 2 | On | On | On | Off |
| 2.8V | 1 & 2 | Off | Off | Off | On |
| 2.9V | 1 & 2 | On | Off | Off | On |
| 3.0V | 1 & 2 | Off | On | Off | On |
| 3.1V | 1 & 2 | On | On | Off | On |
| 3.2V | 1 & 2 | Off | Off | On | On |
| 3.3V | 2 & 3 | On | Off | On | On |
| 3.4V | 2 & 3 | Off | On | On | On |
| 3.5V | 2 & 3 | On | On | On | On |
| Note: Designated pins should be in the closed position. | |||||
