PC CHIPS MANUFACTURING, LTD.
M598
| Device Type | Mainboard |
| Processor | CX 6X86/IBM 6X86/CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/CX M2/AM K5/AM K6/IDT C6/Pentium/Pentium MMX |
| Processor Speed | 90/100/120/133/150/166/180/200/233/266/275/300/325/333/350/366/375/400MHz |
| Chip Set | SIS |
| Video Chip Set | SIS |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 768MB (EDO & SDRAM supported) |
| Maximum Video Memory | 8MB |
| Maximum Audio Memory | Unidentified |
| Cache | 1024/2048KB |
| BIOS | AMI |
| Dimensions | 220mm x 220mm |
| I/O Options (backplane) | 32-bit PCI slots (3), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), VGA interface, IR connector, USB interfaces (2), ATX power connector, audio in - CD-ROMs (3) |

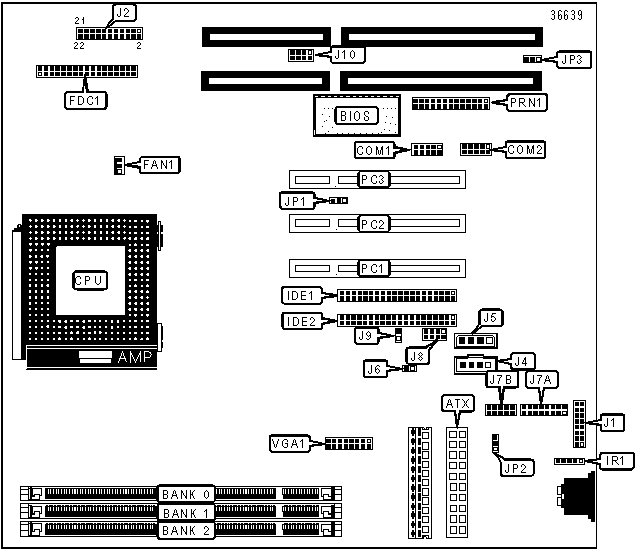

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Reset switch | J2/Pins 17 & 18 |
| Serial interface 1 | COM1 | Power switch/Green PC switch | J2/Pins 21 & 22 |
| Serial interface 2 | COM2 | Audio in - CD-ROM (Sony) | J4 |
| CPU fan power | FAN1 | Audio in - CD-ROM (Panasonic) | J5 |
| Floppy drive interface | FDC1 | Game connector | J7A |
| IDE interface 1 | IDE1 | Sound connector | J7B |
| IDE interface 2 | IDE2 | Digital audio in connector | J8 |
| IR connector | IR1 | PS/2 mouse interface | J10 |
| ATX Form card connector | J1 | Wake-on-LAN connector | JP1 |
| Speaker | J2/Pins1,3,5 & 7 | Digital Audio in - CD-ROM | JP6 |
| Power LED & keylock | J2/Pins 2,4,6,8 & 10 | 32-bit PCI slots | PC1 - PC4 |
| Turbo LED | J2/Pins 13 & 14 | Parallel port | PRN1 |
| IDE interface LED | J2/Pins 15 & 16 | VGA interface | VGA1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Power-on keyboard disabled | JP2 | Pins 1 & 2 closed |
| Power-on keyboard enabled | JP2 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JP3 |
Pins 1 & 2 closed |
| CMOS memory clear | JP3 |
Pins 2 & 3 closed |
|
| » | SPDIF OUT signal level selector 5.0v | J6 | Closed |
|
SPDIF OUT signal level selector 0.5v | J6 | Open |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 32M x 64 |
None |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 32M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
288MB |
(1) 32M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
320MB |
(1) 32M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
384MB |
(1) 32M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
None |
512MB |
(1) 32M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
768MB |
(1) 32M x 64 |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
