TMC RESEARCH CORPORATION
TI6VGA (VER. 1.0A)
| Device Type | Mainboard |
| Processor | Celeron/Pentium II |
| Processor Speed | 233/266/300/300A/333/400/450MHz |
| Chip Set | VIA |
| Audio Chip Set | Creative Labs Inc. |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 0/128/256/512KB (located on the CPU) |
| BIOS | Award |
| Dimensions | 305mm x 200mm |
| I/O Options (backplane) | 32-bit PCI slots (4), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB port, ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROM (2), Wake-on-LAN connector |

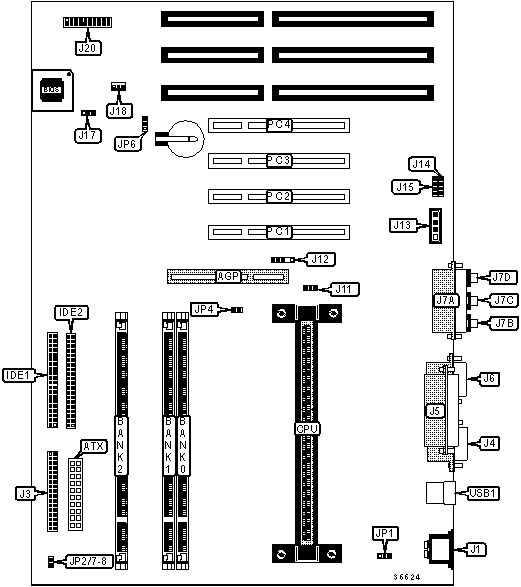

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Audio in - CD-ROM | J13 |
| ATX power connector | ATX |
Audio in - CD-ROM | J14 |
| IDE interface 1 | IDE1 | Unidentified | J15 |
| IDE interface 2 | IDE2 | Wake-on-LAN connector | J17 |
| PS/2 mouse port | J1 | Chassis fan power | J18 |
| Floppy drive interface | J3 | Speaker | J20/Pins 1 - 4 |
| Serial port 1 | J4 | Power LED & keylock | J20/Pins 11 - 15 |
| Parallel port | J5 | Unidentified | J20/Pins 6 & 16 |
| Serial port 2 | J6 | ATX power on switch | J20/Pins 7 & 17 |
| Game port | J7A | Turbo LED connector | J20/Pins 8 & 18 |
| Line out | J7B | Reset switch | J20/Pins 9 & 19 |
| Line in | J7C | IDE interface LED | J20/Pins 10 & 20 |
| Microphone in | J7D | 32-bit PCI slots | PC1 - PC4 |
| CPU fan power | J11 | USB port | USB1 |
| IR connector | J12 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| Set SDRAM CPU clock | JP2/7 - 8 | Open | |
|
Set SDRAM AGP clock | JP2/7 - 8 |
Closed |
| » | Host frequency autodetected | JP4 | Closed |
| Host frequency at 100 MHz | JP4 | Open |
|
» |
CMOS memory normal operation | JP6 |
Pins 1 & 2 closed |
| CMOS memory clear | JP6 |
Pins 2 & 3 closed |
|
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. This board will have 2 Dimm sockets or 2 Dimm sockets; 64MB in place of the 3rd Dimm socket. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A and greater CPUs. |
