TMC RESEARCH CORPORATION
TI6NBF+ (440BX) (VER. 1.0), TI6NBF+ (440ZX) (VER. 1.0)
| Device Type | Mainboard |
| Processor | Celeron/Pentium II/Pentium III |
| Processor Speed | 233/266/300/333/350/400/450/500MHz |
| Chip Set | Intel 440BX/440ZX |
| Audio Chip Set | Creative Technology Ltd. |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB |
| BIOS | Award |
| Dimensions | 305mm x 200mm |
| I/O Options | 32-bit PCI slots (6), floppy drive interface, game port, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, USB connectors (2), ATX power connector, AGP slot, line in, line out, microphone in, Audio in - CD-ROM, IR connector |

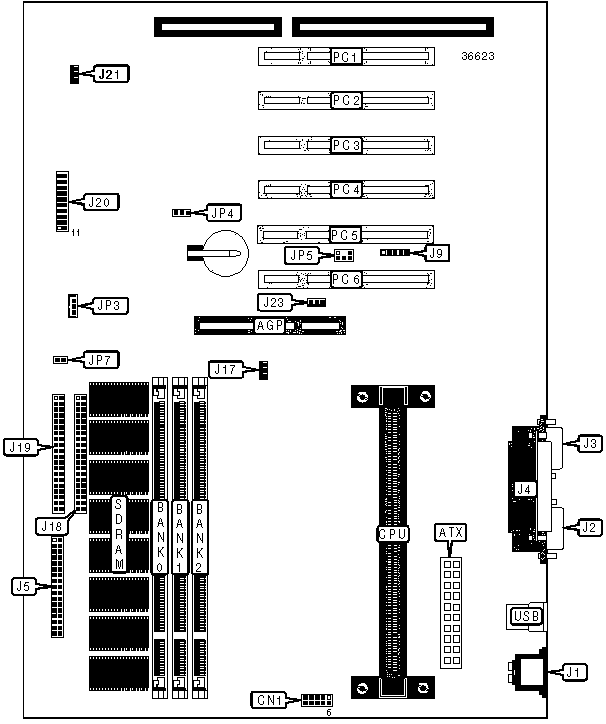

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Power LED & keylock | J20/Pins 11-15 |
| ATX power connector | ATX |
Green PC connector | J20/Pins 6 & 16 |
| Unidentified | CN1 | ATX power on switch | J20/Pins 7 & 17 |
| PS/2 mouse port | J1 | Turbo LED connector | J20/Pins 8 & 18 |
| Serial port 1 | J2 | Reset switch | J20/Pins 9 & 19 |
| Serial port 2 | J3 | IDE interface LED | J20/Pins 10 & 20 |
| Parallel port | J4 | Chassis fan power | J21 |
| Floppy drive interface | J5 | AGP fan power | J23 |
| IR connector | J9 | Wake-on-LAN connector | JP3 |
| CPU fan power | J17 | SB-Link connector | JP5 |
| IDE interface 2 | J18 | 32-bit PCI slots | PC1 - PC6 |
| IDE interface 1 | J19 | USB connector | USB |
| Speaker | J20/Pins 1-4 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP4 |
Pins 1 & 2 closed |
| CMOS memory clear | JP4 |
Pins 2 & 3 closed |
|
| » | Host frequency autodetect | JP7 | Closed |
| Host frequency 100 MHz | JP7 | Open |
|
| DIMM CONFIGURATION | ||||
Size |
SDRAMs | Bank 0 |
Bank 1 |
Bank 2 |
64MB |
64MB | None |
None |
None |
72MB |
64MB | (1) 1M x 64 |
None |
None |
80MB |
64MB | (1) 1M x 64 |
(1) 1M x 64 |
None |
80MB |
64MB | (1) 2M x 64 |
None |
None |
88MB |
64MB | (1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
64MB | (1) 2M x 64 |
(1) 2M x 64 |
None |
96MB |
64MB | (1) 4M x 64 |
None |
None |
96MB |
64MB | (1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
112MB |
64MB | (1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
112MB |
64MB | (1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
128MB |
64MB | (1) 4M x 64 |
(1) 4M x 64 |
None |
128MB |
64MB | (1) 8M x 64 |
None |
None |
128MB |
64MB | (1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
144MB |
64MB | (1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
64MB | (1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
64MB | (1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
64MB | (1) 8M x 64 |
(1) 8M x 64 |
None |
192MB |
64MB | (1) 16M x 64 |
None |
None |
192MB |
64MB | (1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
208MB |
64MB | (1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
224MB |
64MB | (1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
256MB |
64MB | (1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
256MB |
64MB | (1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
320MB |
64MB | (1) 16M x 64 |
(1) 16M x 64 |
None |
320MB |
64MB | (1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
448MB |
64MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | ||||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II/III CPU. 128KB cache is located on the Celeron 300A and greater CPUs. |
