TMC RESEARCH CORPORATION
MI7VGA (VER. 1.0)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/350/366/400/433/450/466/500MHz |
| Chip Set | VIA |
| Audio Chip Set | VIA |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128KB(located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | 245mm x 190mm |
| I/O Options (backplane) | 32-bit PCI slots (3), floppy drive interface, game port, IDE interfaces (2), AGP port, parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (2), Aux audio-in |

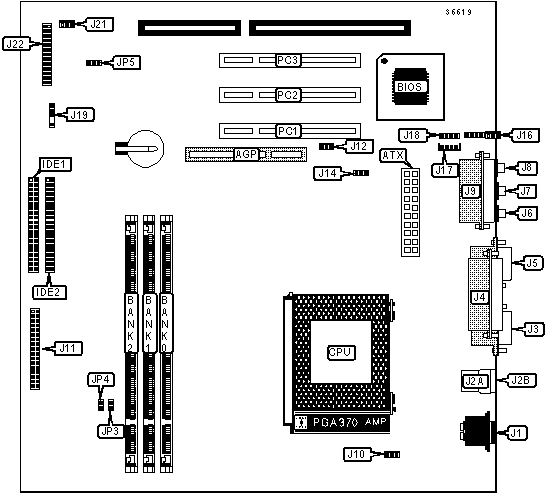

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Floppy drive interface | J11 |
| AGP slot | AGP | Wake-on-LAN connector | J12 |
| EIDE interface 1 | IDE1 | AGP fan power | J14 |
| EIDE interface 2 | IDE2 | Auxilliary audio-in connector | J16 |
| PS/2 mouse port | J1 | Audio in - CD-ROM | J17 |
| USB connector 1 | J2A | Audio in - CD-ROM | J18 |
| USB connector 2 | J2B | IR connector | J19 |
| Serial port 1 | J3 | Chassis fan power | J21 |
| Parallel port | J4 | Speaker | J22/Pins 1 - 4 |
| Serial port 2 | J5 | Power LED | J22/Pins 11 - 15 |
| Line out | J6 | ATX Power-on switch | J22/Pins 7 & 17 |
| Line in | J7 | Turbo LED connector | J22/Pins 8 & 18 |
| Microphone in | J8 | Reset switch | J22/Pins 9 & 19 |
| Game port | J9 | HDD LED | J22/Pins 10 & 20 |
| CPU fan power | J10 | 32-bit PCI slots | PC1 - PC3 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
| CPU clock enabled | JP3 | Open | |
| AGP clock enabled | JP3 | Closed | |
| » | Host frequency autodetect | JP4 | Closed |
| Host frequency set to 100MHz | JP4 | Open | |
» |
CMOS memory normal operation | JP5 |
Pins 1 & 2 closed |
| CMOS memory clear | JP5 |
Pins 2 & 3 closed |
|
| DIMM CONFIGURATION (NEEDING 384MB) | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
8MB |
(1) 1M x 64 |
None |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
None |
24MB |
(1) 1M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 1M x 64 |
(1) 1M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
