DIAMOND FLOWER, INC.
K6XV3+ (REV. AA+)
| Device Type | Mainboard |
| Processor | CX 6X86L/CX 686MX/IBM 6X86MX/CX
M2/ AM K5/AM K6/AM K6-2/AM K6-3/Pentium/Pentium MMX/IDT C6/IDT Winchip2 |
| Processor Speed | 90/100/120/133/150/166/180/200/225/233/240/250/266/300/333/350/ 366/380/400/450/475/500MHz |
| Chip Set | VIA |
| Maximum Onboard Memory | 384MB (EDO & SDRAM supported) |
| Cache | 512/1024/KB |
| BIOS | Award |
| Dimensions | 300mm x 180mm |
| I/O Options | 32-bit PCI slots (4),floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot |

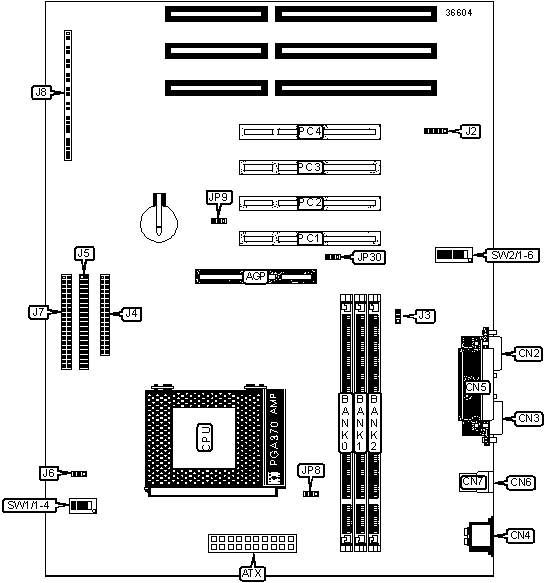

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
| AGP slot | AGP |
CPU fan power | J6 |
| ATX power connector | ATX |
IDE interface 2 | J7 |
| Serial port 2 | CN2 | ATX standby LED | J8/Pins 1 & 2 |
| Serial port 1 | CN3 | IDE interface LED | J8/Pins 4 & 5 |
| PS/2 mouse port | CN4 | Green PC LED | J8/Pins 7 & 8 |
| Parallel port | CN5 | Soft off power supply | J8/Pins 10 & 11 |
| USB port 1 | CN7 | Green PC connector | J8/Pins 13 & 14 |
| USB port 2 | CN6 | Reset switch | J8/Pins 16 & 17 |
| IR connector | J2 | Speaker | J8/Pins 19-22 |
| AGP fan | J3 | Power LED & keylock | J8/Pins 24-28 |
| Floppy drive interface | J4 | 32-bit PCI slots | PC1 - PC4 |
| IDE interface 1 | J5 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP9 | Pins 2 & 3 Closed |
| CMOS memory clear | JP9 | Pins 1 & 2 Closed | |
| » | DIMM clock speed set to AGP clock speed | JP30 | Pins 1 & 2 Closed |
|
DIMM clock speed set to CPU clock speed | JP30 | Pins 2 & 3 Closed |
| DIMM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports EDO & SDRAM memory. | |||
CACHE CONFIGURATION |
Note: cache configuration is unidentified. |
CPU SPEED SELECTION (CX 6X86L) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
150MHz |
60MHz |
2x |
Off | Off | On | On | On | On |
| 166MHz | 66MHz | 2x | Off | Off | On | On | On | Off |
| 200MHz | 75MHz | 2x | Off | Off | On | Off | On | On |
CPU SPEED SELECTION (CX 6X86MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
166MHz |
60MHz |
2.5x |
Off | On | On | On | On | On |
200MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
233MHz |
75MHz |
2.5x |
Off | On | On | Off | On | On |
| 266MHz | 83MHz | 2.5x | Off | On | On | Off | On | Off |
CPU SPEED SELECTION (CX M2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
200MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
| 266MHz | 66MHz | 3x | Off | On | Off | On | On | Off |
| 300MHz | 66MHz | 3.5x | Off | Off | Off | On | On | Off |
| 300MHz | 75MHz | 3x | Off | On | Off | Off | On | On |
| 333MHz | 66MHz | 4x | On | Off | On | On | On | Off |
| 333MHz | 75MHz | 3.5x | Off | Off | Off | Off | On | On |
| 333MHz | 83MHz | 3x | Off | On | Off | Off | On | Off |
| 366MHz | 83MHz | 3.5x | Off | Off | Off | Off | On | Off |
| 366MHz | 100MHz | 2.5x | Off | On | On | Off | Off | Off |
| 380MHz | 100MHz | 3x | Off | On | Off | Off | Off | Off |
| 400MHz | 95MHz | 3.5x | Off | Off | Off | Off | Off | On |
CPU SPEED SELECTION (IBM 6X86MX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
200MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
233MHz |
75MHz |
2.5x |
Off | On | On | Off | On | On |
| 266MHz | 83MHz | 2.5x | Off | On | On | Off | On | Off |
| 300MHz | 66MHz | 3.5x | Off | Off | Off | On | On | Off |
| 300MHz | 75MHz | 3x | Off | On | Off | Off | On | On |
| 333MHz | 83MHz | 3x | Off | On | Off | Off | On | Off |
CPU SPEED SELECTION (AM K5) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
90MHz |
60MHz |
1.5x |
Off | Off | Off | On | On | On |
100MHz |
66MHz |
1.5x |
Off | Off | Off | On | On | Off |
| 120MHz | 60MHz | 2x | Off | Off | On | On | On | On |
| 133MHz | 66MHz | 2x | Off | Off | On | On | On | Off |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off |
CPU SPEED SELECTION (AM K6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
166MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
200MHz |
66MHz |
3x |
Off | On | Off | On | On | Off |
233MHz |
66MHz |
3.5x |
Off | Off | Off | On | On | Off |
| 266MHz | 66MHz | 4x | On | Off | On | On | On | Off |
| 300MHz | 66MHz | 4.5x | On | On | On | On | On | Off |
CPU SPEED SELECTION (AM K6-2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
250MHz |
100MHz |
2.5x |
Off | On | On | Off | Off | Off |
266MHz |
66MHz |
4x |
On | Off | On | On | On | Off |
300MHz |
66MHz |
4.5x |
On | On | On | On | On | Off |
| 300MHz | 100MHz | 3x | Off | On | Off | Off | Off | Off |
| 333MHz | 66MHz | 5x | On | On | Off | On | On | Off |
| 333MHz | 95MHz | 3.5x | Off | Off | Off | Off | Off | On |
| 350MHz | 100MHz | 3.5x | Off | Off | Off | Off | Off | Off |
| 366MHz | 66MHz | 5.5x | On | Off | Off | On | On | Off |
| 380MHz | 95MHz | 4x | On | Off | On | Off | Off | On |
| 400MHz | 100MHz | 4x | On | Off | On | Off | Off | Off |
| 450MHz | 100MHz | 4.5x | On | On | On | Off | Off | Off |
| 475MHZ | 95MHz | 5x | On | On | Off | Off | Off | On |
| 500MHz | 100MHz | 5x | On | On | Off | Off | Off | Off |
CPU SPEED SELECTION (AM K6-3) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
400MHz |
100MHz |
4x |
On | Off | On | Off | Off | Off |
450MHz |
100MHz |
4.5x |
On | On | On | Off | Off | Off |
475MHz |
95MHz |
5x |
On | On | Off | Off | Off | On |
| 500MHz | 100MHz | 5x | On | On | Off | Off | Off | Off |
CPU SPEED SELECTION (IDT C6) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
180MHz |
60MHz |
3x |
Off | On | Off | On | On | On |
200MHz |
66MHz |
3x |
Off | On | Off | On | On | Off |
225MHz |
75MHz |
3x |
Off | On | Off | Off | On | On |
| 240MHz | 60MHz | 4x | On | Off | On | On | On | On |
CPU SPEED SELECTION (IDT WINCHIP2) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
200MHz |
66MHz |
3x |
Off | On | Off | On | On | Off |
225MHz |
75MHz |
3x |
Off | On | Off | Off | On | On |
| 233MHz | 66MHz | 3.5x | Off | Off | Off | On | On | Off |
| 240MHz | 60MHz | 4x | On | Off | On | On | On | On |
| 266MHz | 100MHz | 2.33x | On | On | Off | Off | Off | Off |
| 300MHz | 100MHz | 2.5 | Off | On | On | Off | Off | Off |
CPU SPEED SELECTION (PENTIUM) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
90MHz |
60MHz |
1.5x |
Off | Off | Off | On | On | On |
100MHz |
66MHz |
1.5x |
Off | Off | Off | On | On | Off |
120MHz |
60MHz |
2x |
Off | Off | On | On | On | On |
133MHz |
66MHz |
2x |
Off | Off | On | On | On | Off |
150MHz |
60MHz |
2.5x |
Off | On | On | On | On | On |
166MHz |
66MHz |
2.5x |
Off | On | On | On | On | Off |
| 200MHz | 66MHz | 3x | Off | On | Off | On | On | Off |
CPU SPEED SELECTION (PENTIUM MMX) |
||||||||
CPU speed |
Clock speed |
Multiplier |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
| 166MHz | 66MHz | 2.5x | Off | On | On | On | On | Off |
200MHz |
66MHz |
3x |
Off | On | Off | On | On | Off |
233MHz |
66MHz |
3.5x |
Off | Off | Off |
On | On | Off |
CPU VOLTAGE SELECTION |
|||||
Voltage |
JP8 | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
| 2.0V | Pins 1 & 2 | Off | Off | Off | Off |
| 2.1V | Pins 1 & 2 | On | Off | Off | Off |
| 2.2V | Pins 1 & 2 | Off | On | Off | Off |
| 2.3V | Pins 1 & 2 | On | On | Off | Off |
| 2.4V | Pins 1 & 2 | Off | Off | On | Off |
| 2.5V | Pins 1 & 2 | On | Off | On | Off |
| 2.6V | Pins 1 & 2 | Off | On | On | Off |
| 2.7V | Pins 1 & 2 | On | On | On | Off |
| 2.8V | Pins 1 & 2 | Off | Off | Off | On |
| 2.9V | Pins 1 & 2 | On | Off | Off | On |
| 3.0V | Pins 1 & 2 | Off | On | Off | On |
| 3.1V | Pins 1 & 2 | On | On | Off | On |
| 3.2V | Pins 1 & 2 | Off | Off | On | On |
| 3.3V | Pins 2 & 3 | On | Off | On | On |
| 3.4V | Pins 2 & 3 | Off | On | On | On |
| 3.5V | Pins 2 & 3 | On | On | On | On |
| Note: Pins designated should be in the closed position. | |||||
