CHAINTECH COMPUTER COMPANY, LTD.
CT-6ASA
| Device Type | Mainboard |
| Processor | Pentium II/Pentium Celeron |
| Processor Speed | 233/266/300/333/350/400/450/500MHz |
| Chip Set | VIA |
| Audio Chip Set | ESS |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Maximum Audio Memory | Unidentified |
| Cache | 0/128/256/512KB (Located on the CPU) |
| BIOS | Award |
| Dimensions | 244mm x 210mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, line in, line out, microphone in, audio in - CD-ROM, I2S connector, SB-Link, Wake on LAN connector |

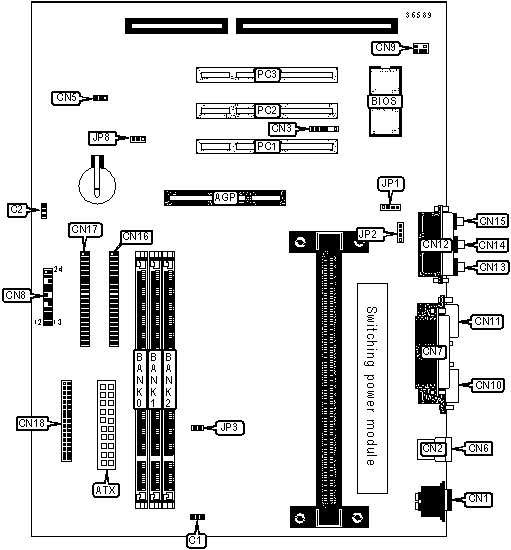

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| AGP slot | AGP |
Speaker | CN8/Pins 15-18 |
| ATX power connector | ATX |
Power LED & keylock | CN8/Pins 20-24 |
| CPU fan power | C1 | SB-Link conector | CN9 |
| System fan power | C2 | Serial port 1 | CN10 |
| PS/2 mouse port | CN1 | Serial port 2 | CN11 |
| USB connector 1 | CN2 | Game port | CN12 |
| IR connector | CN3 | Line out | CN13 |
| Wake on LAN connector | CN5 | Line in | CN14 |
| USB connector 2 | CN6 | Microphone in | CN15 |
| Parallel port | CN7 | IDE interface 2 | CN16 |
| Turbo LED | CN8/Pins 1 & 2 | IDE interface 1 | CN17 |
| Green PC connector | CN8/Pins 4 & 5 | Floppy drive interface | CN18 |
| Green PC LED | CN8/Pins 6 & 7 | Audio in - CD-ROM | JP1 |
| Reset switch | CN8/Pins 9 & 10 | I2S connector | JP2 |
| IDE interface LED | CN8/Pins 11 & 12 | 32-bit PCI slots | PC1 - PC3 |
| Over-ride power connector | CN8/Pins 13 & 14 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
|
Bus frequency automatically detected | JP3 | Closed |
| Bus frequency 100MHz | JP3 | Open | |
| » | CMOS memory normal operation | JP8 | Pins 1 & 2 Closed |
|
CMOS memory clear | JP8 | Pins 2 & 3 Closed |
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 4M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
None |
80MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
None |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
112MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
None |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
None |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
160MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
176MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 2M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
None |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
208MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 2M x 64 |
224MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
272MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 2M x 64 |
288MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 4M x 64 |
320MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300 & 333A CPU. |
