CHAINTECH COMPUTER COMPANY, LTD.

CT-5SSV

Device Type Mainboard
Processor CX 6X86L/IBM 6X86L/CX 686MX/IBM 6X86MX/CX M2/
AM K6/AM K6-2/AM K6III/Pentium/Pentium MMX/IDT C6/IDT Winchip 2
Processor Speed 166/180/200/225/233/240/250/266/300/333/350/366/400/450MHz
Chip Set SIS
Video Chip Set SIS
Audio Chip Set ESS
Maximum Onboard Memory 384MB (SDRAM supported)
Maximum Video Memory 8MB
Maximum Audio Memory Unidentified
Cache 512/1024KB
BIOS Award
Dimensions 244mm x 220mm
I/O Options 32-bit PCI slots (4), floppy drive interface, game port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, IR connector, USB ports (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROM, SB-Link, Wake-on-LAN connector, Modem telephony connector, VGA port, Auxillary in

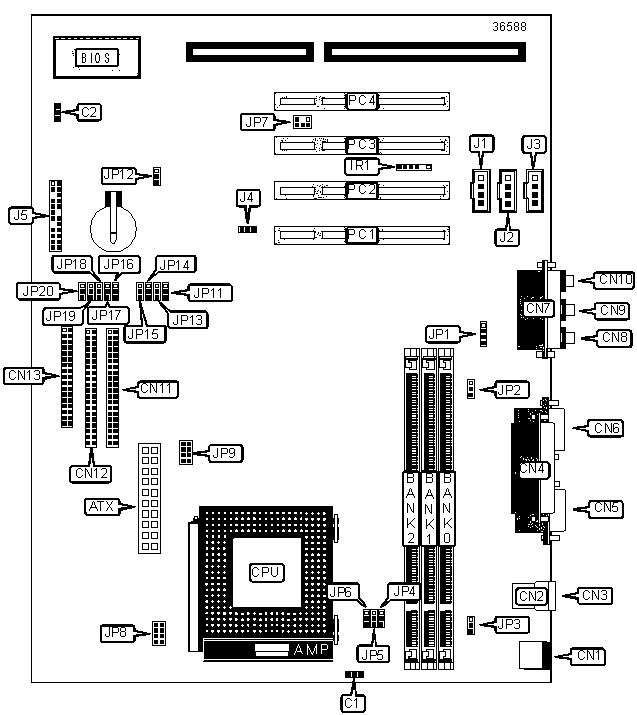

CONNECTIONS
Purpose

Location

Purpose

Location

ATX power connector

ATX

IR connector IR1
CPU fan power   C1 Modem telephony connector J1
System fan power C2 Aux-in connector J2
PS/2 mouse port CN1 Audio in - CD-ROM J3
USB port 1 CN2 Wake-on-LAN connector J4
USB port 2 CN3 Turbo LED J5/Pins 1 & 2
Parallel port CN4 Green PC connector J5/Pins 4 & 5
Serial port 1 CN5 Green PC LED J5/Pins 6 & 7
VGA port CN6 Reset switch J5/Pins 9 & 10
Game port CN7 IDE interface LED J5/Pins 11 & 12
Line out CN8 Over-ride power connector J5/Pins 13 & 14
Line in CN9 Speaker   J5/Pins 15-18
Microphone in CN10 Power LED & keylock J5/Pins 20-24
IDE interface 1 CN11 SB-Link JP7
IDE interface 2 CN12 32-bit PCI slots

PC1 - PC4
Floppy drive interface   CN13


USER CONFIGURABLE SETTINGS

Function

Label

Position



 Volume selection up JP1 Pins 1 & 2 closed
  Volume selection down

JP1

Pins 3 & 4 closed
  On-board VGA enabled JP2 Pins 1 & 2 closed



 On-board VGA disabled JP2 Pins 2 & 3 closed
» Keyboard power-on disabled

JP3

Pins 1 & 2 closed
  Keyboard power-on enabled JP3 Pins 2 & 3 closed
» Core voltage not equal to I/O voltage JP8 Open
  Core voltage equal to I/O voltage JP8 Closed
  I/O voltage not equal to ATX power source JP9 Open
  I/O voltage equal to ATX pwer source JP9 Closed

»

 CMOS memory normal operation

JP12

Pins 2 & 3 closed

  CMOS memory clear

JP12

Pins 1 & 2 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

16MB

(1) 2M x 64

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

32MB

(1) 4M x 64

None

None

48MB

(1) 2M x 64

(1) 2M x 64

(1) 2M x 64

64MB

(1) 4M x 64

(1) 4M x 64

None

64MB

(1) 8M x 64

None

None

64MB

(1) 4M x 64

(1) 2M x 64

(1) 2M x 64

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

96MB

(1) 8M x 64

(1) 2M x 64

(1) 2M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

128MB

(1) 16M x 64

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

160MB

(1) 16M x 64

(1) 2M x 64

(1) 2M x 64

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64
Note: Board supports SDRAM memory.


CACHE CONFIGURATION

Note: Location and configuration of cache memory is unidentified.


CPU SPEED SELECTION (CX 6X86L)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

166MHz

66MHz

2x

2 & 3 2 & 3 2 & 3 1 & 2

200MHz

75MHz

2x

 1 & 2 2 & 3 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (CX 6X86L CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

166MHz

66MHz

2x

2 & 3 1 & 2 1 & 2

200MHz

75MHz

2x

 2 & 3 1 & 2 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

166MHz

66MHz 2x 2 & 3 2 & 3 2 & 3 1 & 2

200MHz

66MHz 2.5x 2 & 3 2 & 3 2 & 3 1 & 2
200MHz 75MHz 2x 1 & 2 2 & 3 2 & 3 1 & 2
233MHz 75MHz 2.5x 1 & 2 2 & 3 2 & 3 1 & 2
233MHz 83MHz 2x 2 & 3 1 & 2 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (CX 6X86MX CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

166MHz

66MHz 2x 2 & 3 1 & 2 1 & 2

200MHz

66MHz 2.5x 2 & 3 2 & 3 1 & 2
200MHz 75MHz 2x 2 & 3 1 & 2 1 & 2
233MHz 75MHz 2.5x 2 & 3 2 & 3 1 & 2
233MHz 83MHz 2x 2 & 3 1 & 2 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (CX MII)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

300MHz

66MHz

3.5x

2 & 3 2 & 3 2 & 3 1 & 2

300MHz

75MHz

3x

 1 & 2 2 & 3 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (CX MII CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

300MHz

66MHz

3.5x

1 & 2 1 & 2 1 & 2

300MHz

75MHz

3x

 1 & 2 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (IBM 6X86L)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

166MHz

66MHz

2x

2 & 3 2 & 3 2 & 3 1 & 2

200MHz

75MHz

2x

 1 & 2 2 & 3 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (IBM 6X86L CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

166MHz

66MHz

2x

2 & 3 1 & 2 1 & 2

200MHz

75MHz

2x

 2 & 3 1 & 2 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (IBM 6X86MX)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

166MHz

66MHz 2x 2 & 3 2 & 3 2 & 3 1 & 2

200MHz

66MHz 2.5x 2 & 3 2 & 3 2 & 3 1 & 2
200MHz 75MHz 2x 1 & 2 2 & 3 2 & 3 1 & 2
233MHz 75MHz 2.5x 1 & 2 2 & 3 2 & 3 1 & 2
233MHz 83MHz 2x 2 & 3 1 & 2 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (IBM 6X86MX CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

166MHz

66MHz 2x 2 & 3 1 & 2 1 & 2

200MHz

66MHz 2.5x 2 & 3 2 & 3 1 & 2
200MHz 75MHz 2x 2 & 3 1 & 2 1 & 2
233MHz 75MHz 2.5x 2 & 3 2 & 3 1 & 2
233MHz 83MHz 2x 2 & 3 1 & 2 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

166MHz

66MHz

2.5x

2 & 3 2 & 3 2 & 3 1 & 2

200MHz

66MHz

3x

 2 & 3 2 & 3 2 & 3 1 & 2
233MHz 66MHz 3.5x 2 & 3 2 & 3 2 & 3 1 & 2
266MHz 66MHz 4x 2 & 3 2 & 3 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (AM K6 CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

166MHz

66MHz

2.5x

2 & 3 2 & 3 1 & 2

200MHz

66MHz

3x

 1 & 2 2 & 3 1 & 2
233MHz 66MHz 3.5x 1 & 2 1 & 2 1 & 2
266MHz 66MHz 4x 2 & 3 1 & 2 2 & 3

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (AM K6-2)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

266MHz

66MHz

4x

2 & 3 2 & 3 2 & 3 1 & 2

300MHz

100MHz

3x

 2 & 3 2 & 3 1 & 2 1 & 2
333MHz 95MHz 3.5x 1 & 2 1 & 2 2 & 3 1 & 2
350MHz 100MHz 3.5x 2 & 3 2 & 3 1 & 2 1 & 2
366MHz 66MHz 5.5x 2 & 3 2 & 3 2 & 3 1 & 2
380MHz 95MHz 4x 1 & 2 1 & 2 2 & 3 1 & 2
400MHz 100MHz 4x 2 & 3 2 & 3 1 & 2 1 & 2
450MHz 100MHz 4.5x 2 & 3 2 & 3 1 & 2 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (AM K6-2 CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

266MHz

66MHz

4x

2 & 3 1 & 2 2 & 3

300MHz

100MHz

3x

 1 & 2 2 & 3 1 & 2
333MHz 95MHz 3.5x 1 & 2 1 & 2 1 & 2
350MHz 100MHz 3.5x 1 & 2 1 & 2 1 & 2
366MHz 66MHz 5.5x 1 & 2 1 & 2 2 & 3
380MHz 95MHz 4x 2 & 3 1 & 2 2 & 3
400MHz 100MHz 4x 2 & 3 1 & 2 2 & 3
450MHz 100MHz 4.5x 2 & 3 2 & 3 2 & 3

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (K6-III)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15
400MHz 100MHz 4x 2 & 3 2 & 3 1 & 2 1 & 2
450MHz 100MHz 4.5x 2 & 3 2 & 3 1 & 2 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (K6-III CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6
400MHz 100MHz 4x 2 & 3 1 & 2 2 & 3
450MHz 100MHz 4.5x 2 & 3 2 & 3 2 & 3

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (IDT C6)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

180MHz

66MHz

3x

2 & 3 2 & 3 2 & 3 1 & 2

225MHz

75MHz

3x

 1 & 2 2 & 3 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (IDT C6 CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

180MHz

66MHz

3x

1 & 2 2 & 3 1 & 2

225MHz

75MHz

3x

 1 & 2 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (IDT WINCHIP 2)

CPU speed

Clock speed

JP11

 JP13 JP14

JP15

250MHz

83MHz

 2 & 3 1 & 2 2 & 3 1 & 2
266MHz 66MHz 2 & 3 2 & 3 2 & 3 1 & 2
300MHz 75MHz 1 & 2 2 & 3 2 & 3 1 & 2
300MHz 100MHz 2 & 3 2 & 3 1 & 2 1 & 2

Note: Designated pins should be in the closed position.


CPU MULTIPLIER SELECTION (IDT WINCHIP 2)

Note: Multiplier information for the IDT Winchip 2 is not available.


CPU SPEED SELECTION (PENTIUM)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

166MHz

66MHz

2.5x

2 & 3 2 & 3 2 & 3 1 & 2

200MHz

66MHz

3x

 2 & 3 2 & 3 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (PENTIUM CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

166MHz

66MHz

2.5x

2 & 3 2 & 3 1 & 2

200MHz

66MHz

3x

 1 & 2 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (PENTIUM MMX)

CPU speed

Clock speed

Multiplier

JP11

 JP13 JP14

JP15

166MHz

66MHz

2.5x

2 & 3 2 & 3 2 & 3 1 & 2

200MHz

66MHz

3x

 2 & 3 2 & 3 2 & 3 1 & 2
233MHz 66MHz 3.5x 2 & 3 2 & 3 2 & 3 1 & 2

Note: Designated pins should be in the closed position.


CPU SPEED SELECTION (PENTIUM MMX CON'T)

CPU speed

Clock speed

Multiplier

JP4

 JP5 JP6

166MHz

66MHz

2.5x

2 & 3 2 & 3 1 & 2

200MHz

66MHz

3x

 1 & 2 2 & 3 1 & 2
233MHz 66MHz 3.5x 1 & 2 1 & 2 1 & 2

Note: Designated pins should be in the closed position.


CPU CORE VOLTAGE SELECTION

Voltage

JP16 JP17 JP18 JP19 JP20
1.8V 1 & 2 2 & 3 1 & 2 2 & 3 2 & 3
2.0V 1 & 2 2 & 3 2 & 3 2 & 3 2 & 3
2.2V 1 & 2 2 & 3 1 & 2 1 & 2 1 & 2
2.4V 1 & 2 1 & 2 2 & 3 1 & 2 1 & 2
2.5V 2 & 3 1 & 2 2 & 3 1 & 2 1 & 2
2.8V 1 & 2 1 & 2 1 & 2 2 & 3 1 & 2
2.9V 2 & 3 1 & 2 1 & 2 2 & 3 1 & 2
3.1V 2 & 3 2 & 3 1 & 2 2 & 3 1 & 2
3.2V 1 & 2 1 & 2 2 & 3 2 & 3 1 & 2
3.3V 2 & 3 1 & 2 2 & 3 2 & 3 1 & 2
3.5V 2 & 3 2 & 3 2 & 3 2 & 3 1 & 2
Note: Designated pins should be in the closed position.
