DIAMOND FLOWER, INC.
CW-35L (REV. A+)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300A/333/366/400/433/466MHz |
| Chip Set | Intel 810-L |
| Video Chip Set | Unidentified |
| Audio Chip Set | Unidentified |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | 1MB (Shared from system memory) |
| Maximum Audio Memory | Unidentified |
| Cache | 128KB (located on the CPU) |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, serial interface, VGA port, riser slot, USB ports (2), IR connector, ATX power connector, line in, line out, microphone in, audio in - CD-ROMs (3) |

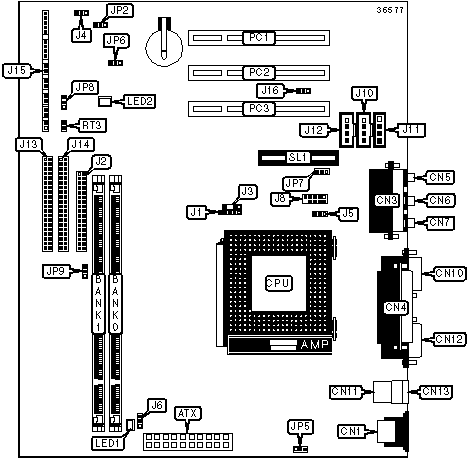

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX | Serial interface | J8 |
| PS/2 mouse port | CN1 | CD-ROM audio in (Sony) | J10 |
| Game/MIDI port | CN3 | CD-ROM audio in (Mitsumi) | J11 |
| Parallel port | CN4 | CD-ROM audio in (Sony) | J12 |
| Microphone in | CN5 | IDE interface 1 | J13 |
| Line in | CN6 | IDE interface 2 | J14 |
| Line out | CN7 | IDE interface LED connector | J15/Pins 1 & 2 |
| VGA port | CN10 | Green PC LED connector | J15/Pins 3 & 4 |
| USB port 1 | CN11 | Power switch connector | J15/Pins 5 & 6 |
| Serial port | CN12 | Green PC switch connector | J15/Pins 7 & 8 |
| USB port 2 | CN13 | Reset switch connector | J15/Pins 9 & 10 |
| IR connector | J1 | PC speaker connector | J15/Pins 11 - 14 |
| Floppy drive interface | J2 | Power LED and keylock connector | J15/Pins 15 - 19 |
| Chassis intrusion connector | J3 | Wake-on-LAN connector | J16 |
| Chassis fan power connector | J4 | 32-bit PCI slots | PC1 - PC3 |
| CPU fan power connector | J5 | Thermal connector | RT3 |
| Power fan connector | J6 | Audio/modem riser slot | SL1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
CMOS memory normal operation | JP2 | Pins 1 & 2 closed |
| CMOS memory clear | JP2 | Pins 2 & 3 closed | |
| » | Wake-on-keyboard/mouse disabled | JP5 | Pins 1 & 2 closed |
|
Wake-on-keyboard/mouse enabled | JP5 |
Pins 2 & 3 closed |
| » | Factory configured - do not alter | JP6 |
Pins 1 & 2 closed |
| » | Audio codec disabled | JP7 |
Pins 1 & 2 closed |
| Audio codec enabled | JP7 |
Pins 2 & 3 closed |
|
| » | PC speaker enabled | JP8 |
Pins 2 & 3 closed |
| External speaker enabled | JP8 |
Pins 1 & 2 closed |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
16MB |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 16M x 64 |
None |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| 256MB | (1) 32M x 64 | None |
| 272MB | (1) 32M x 64 | (1) 2M x 64 |
| 288MB | (1) 32M x 64 | (1) 4M x 64 |
| 320MB | (1) 32M x 64 | (1) 8M x 64 |
| 384MB | (1) 32M x 64 | (1) 16M x 64 |
| 512MB | (1) 32M x 64 | (1) 32M x 64 |
| Note: Board supports EDO & SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A & 333 CPU. |
CPU SPEED SELECTION |
||
Clock speed |
JP9 |
|
| » | Automatic speed selection |
Pins 1 & 2 closed |
66MHZ |
Pins 2 & 3 closed | |
100MHz |
Open | |
DIAGNOSTIC LED(S) |
|||
LED |
Color |
Status |
Condition |
LED1 |
Unidentified |
On |
Power is on or PC is in suspend mode |
LED1 |
Unidentified |
Off |
PC is in soft-off mode |
LED2 |
Unidentified |
On |
Power is on, or PC is in suspend or soft-off mode |
LED2 |
Unidentified |
Off |
Power is off, DIMM modules and expansion cards can be installed |
