DIAMOND FLOWER, INC.
CL60-LX (REV.A+)
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300A/333/366/400/433MHz |
| Chip Set | Intel 440LX |
| Maximum Onboard Memory | 384MB (SDRAM supported) |
| Cache | 128KB (located on the Celeron CPU) |
| BIOS | Award |
| Dimensions | Unidentified |
| I/O Options | 32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB ports (2), ATX power connector, AGP slot, Wake-on-LAN connector, SB-link connector |

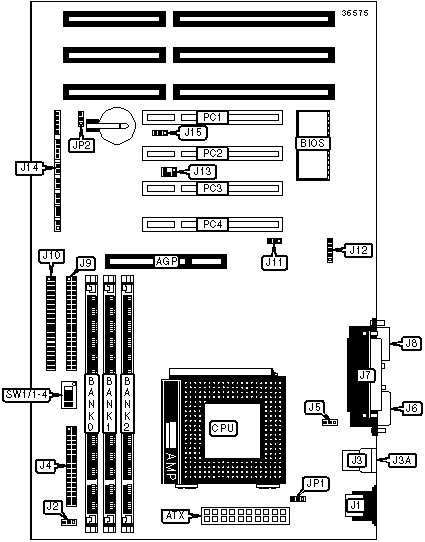

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX | AGP fan power connector | J11 |
| AGP port | AGP | IR connector | J12 |
| PS/2 mouse port | J1 | SB-link connector | J13 |
| Chassis fan power connector | J2 | IDE interface LED connector | J14/Pins 1 & 2 |
| USB port 1 | J3 | Green PC LED connector | J14/Pins 3 & 4 |
| USB port 2 | J3A | Power switch connector | J14/Pins 5 & 6 |
| Floppy drive interface | J4 | Green PC switch connector | J14/Pins 7 & 8 |
| CPU fan power connector | J5 | Reset switch connector | J14/Pins 9 & 10 |
| Serial port 1 | J6 | PC speaker connector | J14/Pins 11 - 14 |
| Parallel port | J7 | Power LED and Keylock connector | J14/Pins 15 - 19 |
| Serial port 2 | J8 | Wake-on-LAN connector | J15 |
| IDE interface 2 | J9 | 32-bit PCI slots | PC1 - PC4 |
| IDE interface 1 | J10 | ||
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Wake-on-Keyboard/Mouse disabled | JP1 | Pins 1 & 2 closed |
| Wake-on-Keyboard/Mouse enabled | JP1 | Pins 2 & 3 closed | |
» |
CMOS memory normal operation | JP2 | Pins 1 & 2 closed |
| CMOS memory clear | JP2 |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
16MB |
(1) 2M x 64 |
None |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
None |
32MB |
(1) 4M x 64 |
None |
None |
48MB |
(1) 2M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
None |
64MB |
(1) 8M x 64 |
None |
None |
64MB |
(1) 4M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
96MB |
(1) 4M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
96MB |
(1) 8M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
None |
128MB |
(1) 16M x 64 |
None |
None |
128MB |
(1) 8M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
160MB |
(1) 16M x 64 |
(1) 2M x 64 |
(1) 2M x 64 |
192MB |
(1) 8M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
192MB |
(1) 16M x 64 |
(1) 4M x 64 |
(1) 4M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
None |
256MB |
(1) 16M x 64 |
(1) 8M x 64 |
(1) 8M x 64 |
384MB |
(1) 16M x 64 |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board supports SDRAM memory. | |||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron 300A & 333 CPU. |
CPU SPEED SELECTION |
||||||
CPU speed |
Clock speed |
Multiplier |
SW1/1 | SW1/2 | SW1/3 | SW1/4 |
300MHz |
66MHz |
4.5x |
Off | On | Off | On |
333MHz |
66MHz |
5x |
On | Off | Off | On |
366MHz |
66MHz |
5.5x |
Off | Off | Off | On |
400MHz |
66MHz |
6x |
On | On | On | Off |
433MHz |
66MHz |
6.5x |
Off | On | On | Off |
