INTEL CORPORATION

L440GX+
Device Type Mainboard
Processor Pentium II
Processor Speed 300/350/400/450MHz
Chip Set Intel 440GX
Video Chip Set Cirrus Logic
Maximum Onboard Memory 2GB (SDRAM supported)
Maximum Video Memory 2MB
Cache 256/512KB (located on the Pentium II CPU)
BIOS Unidentified
Dimensions 304 x 330
I/O Options 32-bit PCI slots (6), Ethernet 10BaseT connector, floppy drive interface, IDE interfaces (2), Wide Ultra SCSI interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, USB connectors (2), ATX power connector

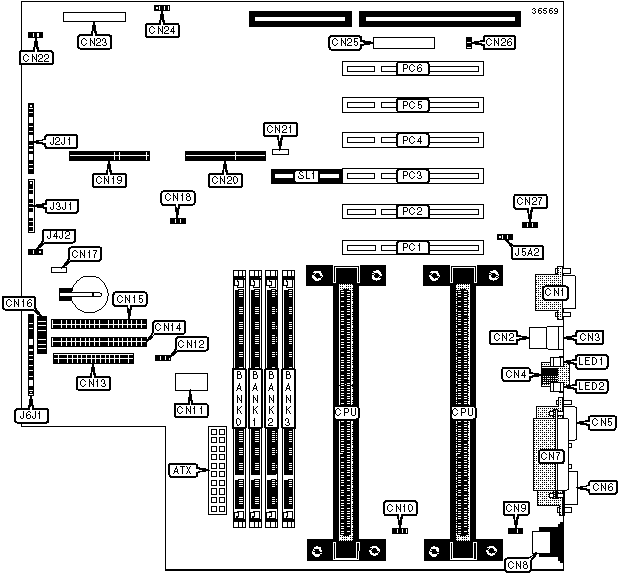

CONNECTIONS

Purpose

Location

 Purpose

Location
ATX power connector ATX External Wake-on-LAN connector CN18
15-pin analog video port CN1 Ultra wide SCSI connector CN19
USB port 1 CN2 Ultra2/LVD SCSI connector CN20
USB port 2 CN3 Hard drive LED connector CN21
RJ-45 UTP connector CN4 Fan power connector CN22
Serial port 1 CN5 Server monitor module connector CN23
Serial port 2 CN6 External Wake-on-LAN connector CN24
Parallel port CN7 Intelligent Chassis Management connector CN25
PS/2 mouse port CN8 Chassis intrusion connector CN26
CPU fan power connector CN9 Fan power connector CN27
CPU fan power connector CN10 Power switch connector J6J1/Pins 1 & 2
ATX auxiliary connector CN11 IDE interface LED connector J6J1/Pins 4 - 7
Fan power connector CN12 PC speaker connector J6J1/Pins 8 - 11
Floppy drive interface CN13 Power LED connector J6J1/Pins 12 - 14
IDE interface 1 CN14 Reset switch connector J6J1/Pins 16 & 17
IDE interface 2 CN15 Green PC switch connector J6J1/Pins 18 & 19
Front panel connector CN16 32-bit PCI slots PC1 - PC6
Isolated Server Management connector CN17 ARO-1130 connector

SL1


USER CONFIGURABLE SETTINGS

Function

Label

Position

»

 Preserve contents of CMOS J2J1 Pins 1 & 2 closed
  Reset CMOS to default settings J2J1 Pins 2 & 3 closed
  Enable and retain power up password J2J1 Pins 5 & 6 closed



 Clear power up password

J2J1

Pins 6 & 7 closed
  Normal boot up from BIOS

J2J1

Pins 9 & 10 closed
  Enable recovery boot up (load BIOS data from floppy)

J2J1

Pins 10 & 11 closed
  Enable write-protect on BIOS flash memory

J2J1

Pins 13 & 14 closed
  Disable write-protect on BIOS flash memory

J2J1

Pins 14 & 15 closed
  Attempt boot from processor 1 if processor 0 fails

J3J1

Pins 1 & 2 closed
  Boot from processor 0, only

J3J1

 Pins 2 & 3 closed
  Enable chassis intrusion detection

J3J1

Pins 5 & 6 closed



 Disable chassis intrusion detection

J3J1

Pins 6 & 7 closed



 Normal operation

J3J1

Pins 9 & 10 closed
  Enable BMC update on power on

J3J1

Pins 10 & 11 closed
  Enable write-protect on BMC boot block

J4J2

Pins 1 & 2 closed
  Disable write-protect on BMC boot block

J4J2

Pins 2 & 3 closed
  Enable Wake-on-LAN J5A2

Pins 2 & 3 closed
  Disable Wake-on-LAN J5A2 Pins 1 & 2 closed
  CMOS memory clear

W510

Pins 2 & 3 closed


DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

32MB

(1) 4M x 64

None

None

None

64MB

(1) 8M x 64**

None

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

None

96MB

(1) 8M x 64

(1) 4M x 64

None

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

128MB

(1) 16M x 64**

None

None

None

128MB

(1) 8M x 64**

(1) 8M x 64**

None

None

128MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

None

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

160MB

(1) 16M x 64

(1) 4M x 64

None

None

160MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

None

160MB

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

192MB

(1) 16M x 64**

(1) 8M x 64**

None

None

192MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

None

192MB

(1) 8M x 64**

(1) 8M x 64**

(1) 8M x 64**

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

224MB

(1) 16M x 64

(1) 8M x 64

(1) 4M x 64

None

224MB

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

224MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

256MB

(1) 32M x 64**

None

None

None

256MB

(1) 16M x 64**

(1) 16M x 64**

None

None

256MB

(1) 16M x 64**

(1) 8M x 64**

(1) 8M x 64**

None

256MB

(1) 16M x 64

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

256MB

(1) 8M x 64**

(1) 8M x 64**

(1) 8M x 64**

(1) 8M x 64**

288MB

(1) 32M x 64

(1) 4M x 64

None

None

288MB

(1) 32M x 64

(1) 2M x 64

(1) 2M x 64

None

288MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

None

288MB

(1) 16M x 64

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

320MB

(1) 32M x 64**

(1) 8M x 64**

None

None

320MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

None

320MB

(1) 16M x 64**

(1) 16M x 64**

(1) 8M x 64**

None

320MB

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

320MB

(1) 16M x 64**

(1) 8M x 64**

(1) 8M x 64**

(1) 8M x 64**

352MB

(1) 32M x 64

(1) 8M x 64

(1) 4M x 64

None

352MB

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

352MB

(1) 16M x 64

(1) 16M x 64

(1) 8M x 64

(1) 4M x 64

384MB

(1) 32M x 64**

(1) 16M x 64**

None

None

384MB

(1) 32M x 64**

(1) 8M x 64**

(1) 8M x 64**

None

384MB

(1) 32M x 64

(1) 8M x 64

(1) 4M x 64

(1) 4M x 64

384MB

(1) 16M x 64**

(1) 16M x 64**

(1) 16M x 64**

None

384MB

(1) 16M x 64**

(1) 16M x 64**

(1) 8M x 64**

(1) 8M x 64**

416MB

(1) 32M x 64

(1) 16M x 64

(1) 4M x 64

None

416MB

(1) 32M x 64

(1) 8M x 64

(1) 8M x 64

(1) 4M x 64

416MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

448MB

(1) 32M x 64**

(1) 16M x 64**

(1) 8M x 64**

None

448MB

(1) 32M x 64

(1) 16M x 64

(1) 4M x 64

(1) 4M x 64

448MB

(1) 32M x 64**

(1) 8M x 64**

(1) 8M x 64**

(1) 8M x 64**

448MB

(1) 16M x 64**

(1) 16M x 64**

(1) 16M x 64**

(1) 8M x 64**

480MB

(1) 32M x 64

(1) 16M x 64

(1) 8M x 64

(1) 4M x 64

512MB

(1) 32M x 64**

(1) 32M x 64**

None

None

512MB

(1) 32M x 64**

(1) 16M x 64**

(1) 16M x 64**

None

512MB

(1) 32M x 64**

(1) 16M x 64**

(1) 8M x 64**

(1) 8M x 64**

512MB

(1) 16M x 64**

(1) 16M x 64**

(1) 16M x 64**

(1) 16M x 64**
512MB (1) 64M x 64* None None None

544MB

(1) 32M x 64

(1) 32M x 64

(1) 4M x 64

None

544MB

(1) 32M x 64

(1) 16M x 64

(1) 16M x 64

(1) 4M x 64

576MB

(1) 32M x 64**

(1) 32M x 64**

(1) 8M x 64**

None

576MB

(1) 32M x 64

(1) 32M x 64

(1) 4M x 64

(1) 4M x 64

576MB

(1) 32M x 64**

(1) 16M x 64**

(1) 16M x 64**

(1) 8M x 64**
576MB (1) 64M x 64* (1) 8M x 64* None None

608MB

(1) 32M x 64

(1) 32M x 64

(1) 8M x 64

(1) 4M x 64

640MB

(1) 32M x 64**

(1) 32M x 64**

(1) 16M x 64**

None

640MB

(1) 32M x 64**

(1) 32M x 64**

(1) 8M x 64**

(1) 8M x 64**

640MB

(1) 32M x 64*

(1) 16M x 64**

(1) 16M x 64**

(1) 16M x 64**
640MB (1) 64M x 64* (1) 16M x 64* None None
640MB (1) 64M x 64* (1) 8M x 64* (1) 8M x 64* None

672MB

(1) 32M x 64

(1) 32M x 64

(1) 16M x 64

(1) 4M x 64

704MB

(1) 32M x 64**

(1) 32M x 64**

(1) 16M x 64**

(1) 8M x 64**
704MB (1) 64M x 64* (1) 16M x 64* (1) 8M x 64* None
704MB (1) 64M x 64* (1) 8M x 64* (1) 8M x 64* (1) 8M x 64*

768MB

(1) 32M x 64**

(1) 32M x 64**

(1) 32M x 64**

None

768MB

(1) 32M x 64**

(1) 32M x 64**

(1) 16M x 64**

(1) 16M x 64**
768MB (1) 64M x 64* (1) 32M x 64* None None
768MB (1) 64M x 64* (1) 16M x 64* (1) 16M x 64* None
768MB (1) 64M x 64* (1) 16M x 64* (1) 8M x 64* (1) 8M x 64*

800MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

(1) 4M x 64

836MB

(1) 32M x 64**

(1) 32M x 64**

(1) 32M x 64**

(1) 8M x 64**

836MB

(1) 32M x 64**

(1) 32M x 64**

(1) 32M x 64**

None

1024MB

(1) 32M x 64**

(1) 32M x 64**

(1) 32M x 64**

(1) 32M x 64**
1024MB (1) 64M x 64* (1) 64M x 64* None None
1024MB (1) 64M x 64* (1) 32M x 64* (1) 32M x 64* None
1024MB (1) 64M x 64* (1) 32M x 64* (1) 16M x 64* (1) 16M x 64*
1088MB (1) 64M x 64* (1) 32M x 64* (1) 32M x 64* (1) 8M x 64*
1088MB (1) 64M x 64* (1) 64M x 64* (1) 8M x 64* None
1152MB (1) 64M x 64* (1) 64M x 64* (1) 16M x 64* None
1152MB (1) 64M x 64* (1) 32M x 64* (1) 32M x 64* (1) 16M x 64*
1152MB (1) 64M x 64* (1) 64M x 64* (1) 8M x 64* (1) 8M x 64*
1216MB (1) 64M x 64* (1) 64M x 64* (1) 16M x 64* (1) 8M x 64*
1280MB (1) 64M x 64* (1) 64M x 64* (1) 32M x 64* None
1280MB (1) 64M x 64* (1) 64M x 64* (1) 16M x 64* (1) 16M x 64*
1280MB (1) 64M x 64* (1) 32M x 64* (1) 32M x 64* (1) 32M x 64*
1344MB (1) 64M x 64* (1) 64M x 64* (1) 32M x 64* (1) 8M x 64*
1408MB (1) 64M x 64* (1) 64M x 64* (1) 32M x 64* (1) 16M x 64*
1536MB (1) 64M x 64* (1) 64M x 64* (1) 64M x 64* None
1536MB (1) 64M x 64* (1) 64M x 64* (1) 32M x 64* (1) 32M x 64*
1600MB (1) 64M x 64* (1) 64M x 64* (1) 64M x 64* (1) 8M x 64*
1664MB (1) 64M x 64* (1) 64M x 64* (1) 64M x 64* (1) 16M x 64*
1792MB (1) 64M x 64* (1) 64M x 64* (1) 64M x 64* (1) 32M x 64*
2048MB (1) 64M x 64* (1) 64M x 64* (1) 64M x 64* (1) 64M x 64*
Note: Board accepts SDRAM memory.
*Note:  Designated DIMMs must be registered memory.
**Note:  Designated DIMM combinantions can be either registered or unbuffered memory.


CACHE CONFIGURATION

Note:   256KB/512KB cache is located on the Pentium II CPU.
