COMPAQ COMPUTER CORPORATION
PROLIANT 4000R
| Device Type | Mainboard |
| Processor | Pentium |
| Processor Speed | 66/90/100/133/166MHz |
| Chip Set | Unidentified |
| Video Chip Set | Unidentified |
| Maximum Onboard Memory | 512MB |
| Maximum Video Memory | Unidentified |
| Cache | Unidentified |
| BIOS | Unidentified |
| Dimensions | 311mm x 482mm |
| I/O Options | 32-bit external memory card, 32-bit EISA local bus slots (8), floppy drive interface, SCSI-2 interface, riser slot |

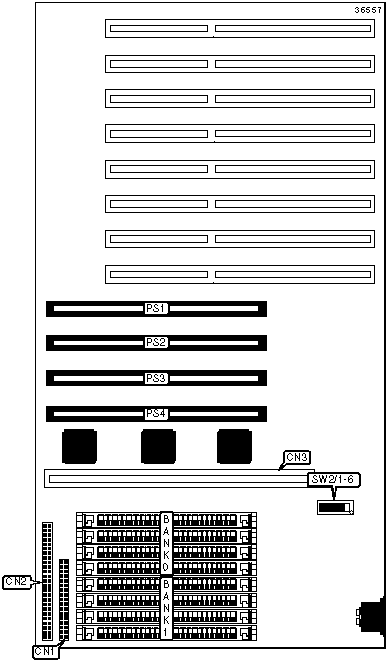

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Floppy drive interface | CN1 | Memory board slot | CN3 |
| SCSI interface | CN2 | Processor slots | PS1 - PS4 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Video enabled | SW1/1 | Off |
| Video disabled | SW1/1 | On | |
| » | One or two processors installed in processor slots | SW1/2 | Off |
|
Three or four processors are installed in processor slots | SW1/2 |
On |
| » | Factory configured - do not alter | SW1/3 |
Off |
| » | Boot from diskette disabled | SW1/4 |
Off |
| Boot from diskette enabled | SW1/4 |
On |
|
| » | Password at power-on disabled | SW1/5 |
Off |
| Password at power-on enabled | SW1/5 |
On |
|
| » | Validate NVRAM | SW1/6 |
Off |
| Invalidate and clear NVRAM | SW1/6 |
On |
|
SIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
16MB |
(4) 2MB X 36 |
None |
32MB |
(4) 4MB X 36 |
None |
64MB |
(4) 4MB x 36 |
(4) 4MB x 36 |
128MB |
(4) 16MB x 36 |
None |
512MB |
(4) 16MB x 36 |
(4) 16MB x 36 |
