HEWLETT-PACKARD COMPANY
HP VECTRA VEI 7
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 233/266/300/333MHz |
| Chip Set | SIS 620 |
| Video Chip Set | SIS |
| Maximum Onboard Memory | 512MB (SDRAM supported) |
| Maximum Video Memory | 8MB |
| Audio Chip Set | Unidentified |
| Cache | 128KB (located on Celeron CPU) |
| BIOS | Phoenix |
| Dimensions | 254mm x 218mm |
| I/O Options | 32-bit PCI slots (3), floppy drive interface, game/MIDI port, IDE interfaces (2), parallel port, PS/2 mouse port, serial port, VGA port, USB connectors (2), ATX power connector, line in, line out, microphone in, wake on LAN connector |

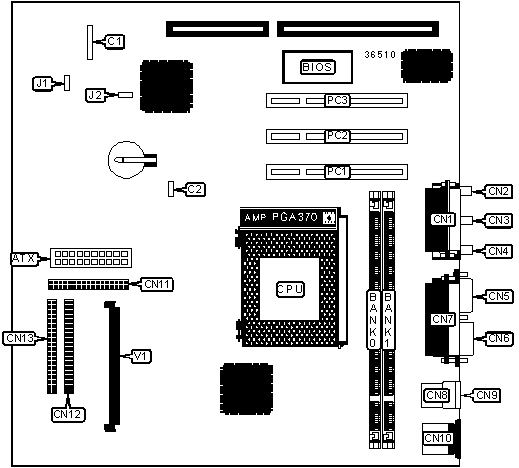

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| ATX power connector | ATX |
Parallel port | CN7 |
| Front panel connector | C1 |
USB connector 1 | CN8 |
| Wake on LAN connector | C2 |
USB connector 2 | CN9 |
| Game/MIDI port | CN1 |
PS/2 mouse port | CN10 |
| Microphone in | CN2 |
Floppy drive interface | CN11 |
| Line in | CN3 |
IDE interface 2 | CN12 |
| Line out | CN4 |
IDE interface 1 | CN13 |
| VGA port | CN5 |
32-bit PCI slots | PC1 – PC3 |
| Serial port | CN6 |
Video memory module | V1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Factory configured - do not alter | J1 |
Unidentified |
» |
Factory configured - do not alter | J2 |
Unidentified |
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
128MB |
(1) 16M x 64 |
None |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
256MB |
(1) 32M x 64 |
None |
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
| Note: Board accepts SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron CPU. |
VIDEO MEMORY CONFIGURATION |
|
Size |
V1 |
4MB |
4MB module installed |
8MB |
8MB module installed |
