INTEL CORPORATION
BL440ZX
| Device Type | Mainboard |
| Processor | Celeron |
| Processor Speed | 300/333/366MHz |
| Chip Set | Intel 440ZX |
| Video Chip Set | ATI |
| Maximum Onboard Memory | 256MB (SDRAM supported) |
| Maximum Video Memory | 8MB |
| Audio Chip Set | Creative |
| Cache | 128KB (located on Celeron CPU) |
| BIOS | AMI |
| Dimensions | 254mm x 218mm |
| I/O Options | Ethernet 10BaseT connector, floppy drive interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, USB connectors (2), line out, microphone in |

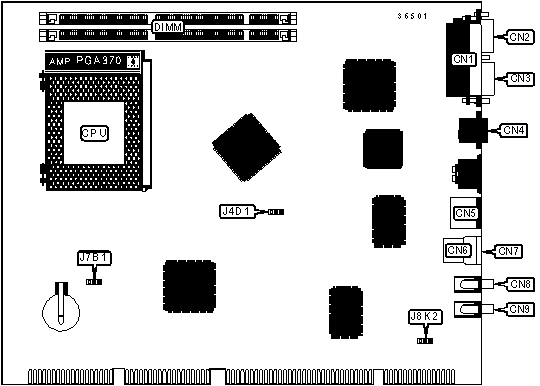

CONNECTIONS |
|||
| Purpose | Location |
Purpose | Location |
| Parallel port | CN1 |
USB connector 1 | CN6 |
| VGA port | CN2 |
USB connector 2 | CN7 |
| Serial port | CN3 |
Line out | CN8 |
| Ethernet 10BaseT connector | CN4 |
Microphone in | CN9 |
| PS/2 mouse port | CN5 |
CPU fan power | J4D1 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Microphone in select mainboard back panel | J8K2 |
Pins 2 & 3 closed |
| Microphone in select NLX riser card | J8K2 |
Pins 1 & 2 closed |
|
DIMM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(1) 1M x 64 |
None |
16MB |
(1) 2M x 64 |
None |
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
32MB |
(1) 4M x 64 |
None |
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
64MB |
(1) 8M x 64 |
None |
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
128MB |
(1) 16M x 64 |
None |
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
| Note: Board accepts SDRAM memory. | ||
CACHE CONFIGURATION |
| Note: 128KB cache is located on the Celeron CPU. |
VIDEO MEMORY CONFIGURATION |
| Note: The location of the video memory is unidentified. |
BIOS SELECTION |
|
Setting |
J7B1 |
Normal operation |
Pins 1 & 2 closed |
Configuration mode |
Pins 2 & 3 closed |
Recovery mode |
Open |
