EPOX COMPUTER CO., LTD.
P5-SP
|
Device Type |
Mainboard |
|
Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
SIS 501 |
|
Maximum Onboard Memory |
128MB |
|
Cache |
256/512/1024KB |
|
BIOS |
Award |
|
Dimensions |
254mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), Legacy connector |
|

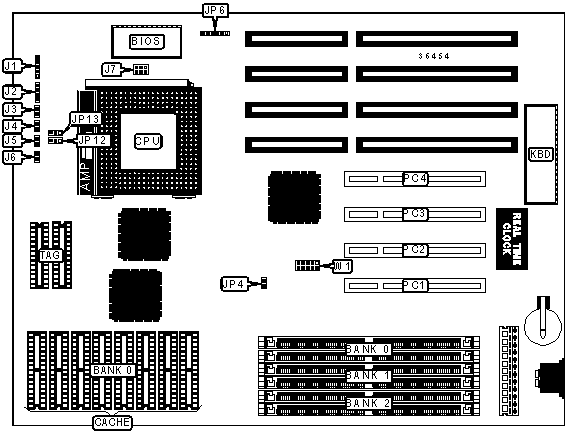

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
J1 |
Green PC LED |
J6 |
|
Speaker |
J2 |
CPU fan power |
J7 |
|
Reset switch |
J3 |
32-bit PCI slots |
PC1 – PC4 |
|
Turbo switch |
J4 |
Legacy connector |
W1 |
|
Turbo LED |
J5 |
||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
BIOS type select flash BIOS |
JP6 |
Pins 1 & 2, 5 & 6 closed |
|
|
BIOS type select EPROM |
JP6 |
Pins 2 & 3, 4 & 5 closed |
|
|
SIMM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
None |
None |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
None |
|
4MB |
(2) 512K x 36 |
None |
None |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
None |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
None |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
None |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
None |
|
18MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
20MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
None |
|
22MB |
(2) 2M x 36 |
(2) 512K x 36 |
(2) 256K x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
None |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
26MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
28MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
32MB |
(2) 4M x 36 |
None |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
None |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
None |
|
38MB |
(2) 4M x 36 |
(2) 256K x 36 |
(2) 512K x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
None |
|
40MB |
(2) 4M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
42MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
44MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 512K x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
None |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
50MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 256K x 36 |
|
52MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 512K x 36 |
|
56MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
64MB |
(2) 8M x 36 |
None |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
None |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
None |
|
66MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 256K x 36 |
|
SIMM CONFIGURATION (CON’T) |
|||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
None |
|
68MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 512K x 36 |
|
70MB |
(2) 8M x 36 |
(2) 256K x 36 |
(2) 512K x 36 |
|
72MB |
(2) 8M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
74MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 256K x 36 |
|
76MB |
(2) 8M x 36 |
(2) 512K x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
None |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
82MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 256K x 36 |
|
84MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 512K x 36 |
|
88MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 1M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
None |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
98MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 256K x 36 |
|
100MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 512K x 36 |
|
104MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
112MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 2M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
None |
|
CACHE CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
256KB |
(4) 32K x 8 |
None |
(2) 8K x 8 |
|
512KB |
(4) 32K x 8 |
(4) 32K x 8 |
(2) 16K x 8 |
|
1MB |
(4) 64K x 8 |
(4) 64K x 8 |
(2) 32K x 8 |
|
CACHE JUMPER CONFIGURATION |
||
|
Size |
JP12 |
JP13 |
|
256KB |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
512KB |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
1MB |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
CPU SPEED SELECTION |
|
|
Speed |
JP4 |
|
60MHz |
Open |
|
66MHz |
Closed |
