LUCKY STAR TECHNOLOGY CO., LTD.
6ZX2
|
Device Type |
Mainboard |
|
Processor |
Pentium II/Celeron/Pentium III |
|
Processor Speed |
233/266/300/333/350/400/450/500MHz |
|
Chip Set |
Intel 440ZX |
|
Maximum Onboard Memory |
512MB (EDO & SDRAM & PC100 supported) |
|
Cache |
0/128/256/512KB (located on the CPU) |
|
BIOS |
Award |
|
Dimensions |
220mm x 220mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), USB connector, ATX power connector, AGP slot, SB-link connector, wake on LAN connector |
|

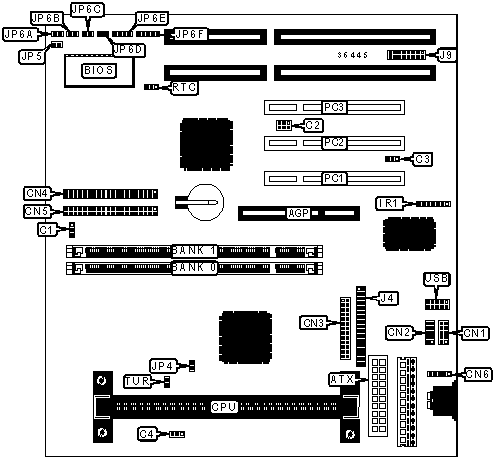

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
IR connector |
IR1 |
|
ATX power connector |
ATX |
Floppy drive interface |
J4 |
|
Chassis fan power |
C1 |
Soft off power supply |
JP5 |
|
SB-link connector |
C2 |
Power LED & keylock |
JP6A |
|
Wake on LAN connector |
C3 |
Speaker |
JP6B |
|
Chassis fan power |
C4 |
Reset switch |
JP6C |
|
Serial port 2 |
CN1 |
IDE interface LED |
JP6D |
|
Serial port 1 |
CN2 |
Turbo switch |
JP6E |
|
Parallel port |
CN3 |
Green PC connector |
JP6F |
|
IDE interface 2 |
CN4 |
32-bit PCI slots |
PC1 – PC3 |
|
IDE interface 1 |
CN5 |
USB connector |
USB |
|
PS/2 mouse interface |
CN6 |
IR connector |
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Factory configured - do not alter |
JP4 |
Unidentified |
|
» |
Factory configured - do not alter |
J9 |
Unidentified |
|
» |
CMOS memory normal operation |
RTC |
Pins 1 & 2 closed |
|
CMOS memory clear |
RTC |
Pins 2 & 3 closed |
|
|
DIMM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
|
128MB |
(1) 16M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
|
256MB |
(1) 32M x 64 |
None |
|
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
|
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
|
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
|
DIMM CONFIGURATION (CON’T) |
||
|
Size |
Bank 0 |
Bank 1 |
|
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
|
Note: Board accepts EDO & SDRAM & PC100 memory. |
||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU. 512KB cache is located on the Pentium III CPU. |
|
CPU OVERCLOCK SELECTION |
|
|
Setting |
TUR |
|
Normal |
Closed |
|
Over clock |
Open |
