LUCKY STAR TECHNOLOGY CO., LTD.
6ZX
|
Device Type |
Mainboard |
|
Processor |
Celeron |
|
Processor Speed |
233/266/300/333/366MHz |
|
Chip Set |
Intel 440ZX |
|
Maximum Onboard Memory |
256MB (SDRAM supported) |
|
Cache |
128KB (located on Celeron CPU) |
|
BIOS |
Award |
|
Dimensions |
220mm x 220mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector, AGP slot, SB-link connector, wake on LAN connector |
|
CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
PS/2 mouse interface |
CN7 |
|
ATX power connector |
ATX |
IR connector |
IR1 |
|
SB-link connector |
C1 |
Green PC connector |
JP5 |
|
Chassis fan power |
C2 |
Power LED & keylock |
JP6A |
|
Chassis fan power |
C3 |
Speaker |
JP6B |
|
Wake on LAN connector |
C4 |
Reset switch |
JP6C |
|
Serial port 2 |
CN1 |
IDE interface LED |
JP6D |
|
Serial port 1 |
CN2 |
Turbo switch |
JP6E |
|
Parallel port |
CN3 |
Soft off power supply |
JP6F |
|
Floppy drive interface |
CN4 |
32-bit PCI slots |
PC1 - PC3 |
|
IDE interface 1 |
CN5 |
USB connector |
USB |
|
IDE interface 2 |
CN6 |
|
|
|

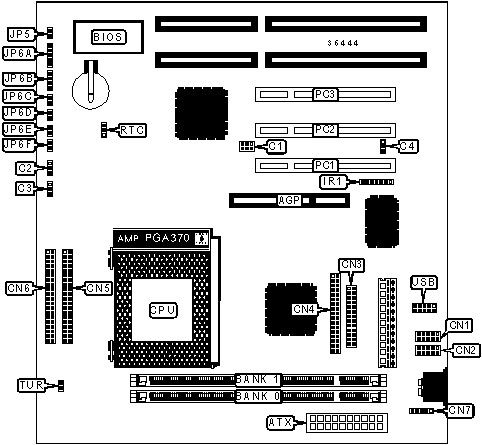

USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
CMOS memory normal operation |
RTC |
Pins 1 & 2 closed |
|
|
CMOS memory clear |
RTC |
Pins 2 & 3 closed |
|
DIMM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 16M x 64 |
None |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
|
Note: Board accepts SDRAM memory. |
||
|
CACHE CONFIGURATION |
|
Note: 128KB cache is located on the Celeron CPU. |
|
CPU OVERCLOCK SELECTION |
|
|
Setting |
TUR |
|
Normal |
Closed |
|
Over clock |
Open |
