Device Type

Mainboard

Processor

Pentium II/Celeron

Processor Speed

233/266/300/333/366/350/400/450MHz

Chip Set

Intel 440ZX

Video Chip Set

Unidentified

Maximum Onboard Memory

512MB (EDO & SDRAM supported)

Maximum Video Memory

Unidentified

Audio Chip Set

Unidentified

Cache

0/128/256/512KB (located on the CPU)

BIOS

Award

Dimensions

244mm x 244mm

I/O Options

32-bit PCI slots (2), floppy drive interface, game/MIDI port, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, IR connector, USB connectors (2), ATX power connector, line in, line out, microphone in, audio in - CD-ROM, SB-link connector, wake on LAN connector

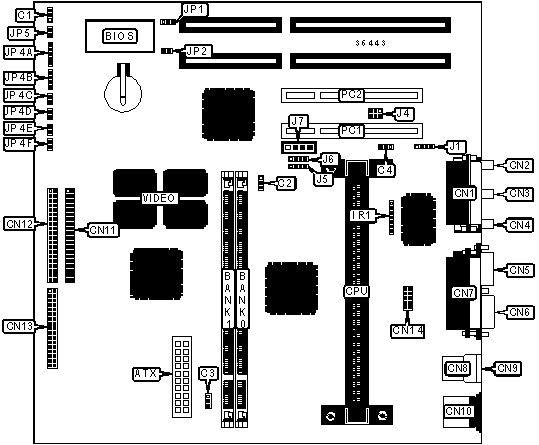

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Floppy drive interface

CN13

Chassis fan power

C1

Serial port 2

CN14

Chassis fan power

C2

IR connector

IR1

Chassis fan power

C3

Line out

J1

Wake on LAN connector

C4

SB-link connector

J4

Game/MIDI port

CN1

Auxiliary in

J5

Microphone in

CN2

Tuner in

J6

Line in

CN3

Audio in - CD-ROM

J7

Line out

CN4

Power LED & keylock

JP4A

VGA port

CN5

Speaker

JP4B

Serial port 1

CN6

Reset switch

JP4C

Parallel port

CN7

IDE interface LED

JP4D

USB connector 1

CN8

Turbo switch

JP4E

USB connector 2

CN9

Soft off power supply

JP4F

PS/2 mouse port

CN10

Green PC connector

JP5

IDE interface 2

CN11

32-bit PCI slots

PC1 - PC3

IDE interface 1

CN12

USER CONFIGURABLE SETTINGS

Function

Label

Position

Flash BIOS voltage select 12v

JP1

Pins 2 & 3 closed

Flash BIOS voltage select 5v

JP1

Pins 1 & 2 closed

»

CMOS memory normal operation

JP2

Open

CMOS memory clear

JP2

Closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

128MB

(1) 16M x 64

None

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

DIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

256MB

(1) 32M x 64

None

264MB

(1) 32M x 64

(1) 1M x 64

272MB

(1) 32M x 64

(1) 2M x 64

288MB

(1) 32M x 64

(1) 4M x 64

320MB

(1) 32M x 64

(1) 8M x 64

384MB

(1) 32M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

Note: Board accepts EDO & SDRAM memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU.

VIDEO MEMORY CONFIGURATION

Note: The size of the video memory is unidentified.
