KAM-TRONIC COMPUTER CO., LTD.

P6NPI

Device Type

Mainboard

Processor

Pentium Pro

Processor Speed

133/150/166/180/200MHz

Chip Set

Intel 440FX

Maximum Onboard Memory

512MB (EDO supported)

Cache

256/512KB (located on Pentium Pro CPU)

BIOS

AMI

Dimensions

305mm x 244mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), Ultra Wide SCSI interface, Fast SCSI interface, parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connector, ATX power connector

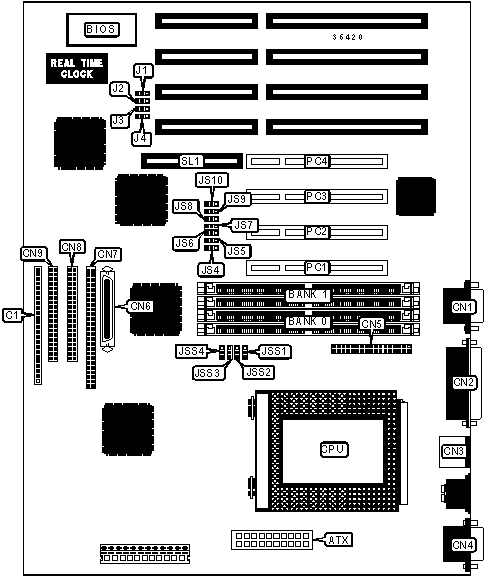

CONNECTIONS

Purpose

Location

Purpose

Location

ATX power connector

ATX

Parallel port

CN2

Soft on power

C1/pins 1 & 2

PS/2 mouse port

CN3

Turbo LED

C1/pins 3 & 4

Serial port 1

CN4

Power LED & keylock

C1/ pins 5 - 9

Ultra Wide SCSI interface

CN5

IDE interface LED

C1/pins 10 - 13

Fast SCSI interface

CN6

Speaker

C1/pins 14 - 17

IDE interface 1

CN7

Reset switch

C1/pins 18 & 19

IDE interface 2

CN8

Green PC connector

C1/pins 20 & 21

Floppy drive interface

CN9

IR connector

C1/pins 22 - 26

32-bit PCI slots

PC1 - PC4

Serial port 2

CN1

RAID slot

  SL1


USER CONFIGURABLE SETTINGS

Function

Label

Position

Flash BIOS voltage select 12v

J1

Pins 1 & 2 closed

Flash BIOS voltage select 5v

J1

Pins 2 & 3 closed

»

CMOS memory normal operation

J2

Pins 1 & 2 closed

CMOS memory clear

J2

Pins 2 & 3 closed

»

Monitor type select color

J3

Pins 1 & 2 closed

Monitor type select monochrome

J3

Pins 2 & 3 closed

»

Password normal operation

J4

Pins 1 & 2 closed

Password clear

J4

Pins 2 & 3 closed

»

SCSI high byte termination select auto

JS8

Pins 1 & 2 closed

SCSI high byte termination select always

JS8

Pins 2 & 3 closed

»

RAID support select normal

JS9

Pins 1 & 2 closed

RAID support select ARO-1130 RAID card installed

JS9

Pins 2 & 3 closed

»

SCSI data bus width select Fast 8-bit

JS10

Pins 2 & 3 closed

SCSI data bus width select Fast and Wide 16-bit

JS10

Pins 1 & 2 closed


SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36


SIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

256MB

(2) 32M x 36

None

264MB

(2) 32M x 36

(2) 1M x 36

272MB

(2) 32M x 36

(2) 2M x 36

288MB

(2) 32M x 36

(2) 4M x 36

320MB

(2) 32M x 36

(2) 8M x 36

384MB

(2) 32M x 36

(2) 16M x 36

512MB

(2) 32M x 36

(2) 32M x 36

Note: Board accepts EDO memory.


CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.


CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JS4

JS5

JS6

JS7

133MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

1 & 2

150MHz

60MHz

2.5x

1 & 2

1 & 2

1 & 2

2 & 3

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

2 & 3

180MHz

60MHz

3x

1 & 2

1 & 2

2 & 3

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

2 & 3

1 & 2

Note: Pins designated should be in the closed position.


CPU SPEED SELECTION (CON'T)

CPU speed

Clock speed

Multiplier

JSS1

JSS2

JSS3

JSS4

133MHz

66MHz

2x

2 & 3

2 & 3

2 & 3

2 & 3

150MHz

60MHz

2.5x

1 & 2

1 & 2

1 & 2

1 & 2

166MHz

66MHz

2.5x

2 & 3

2 & 3

2 & 3

2 & 3

180MHz

60MHz

3x

1 & 2

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

2 & 3

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.
